| LCD Description | |
|---|---|

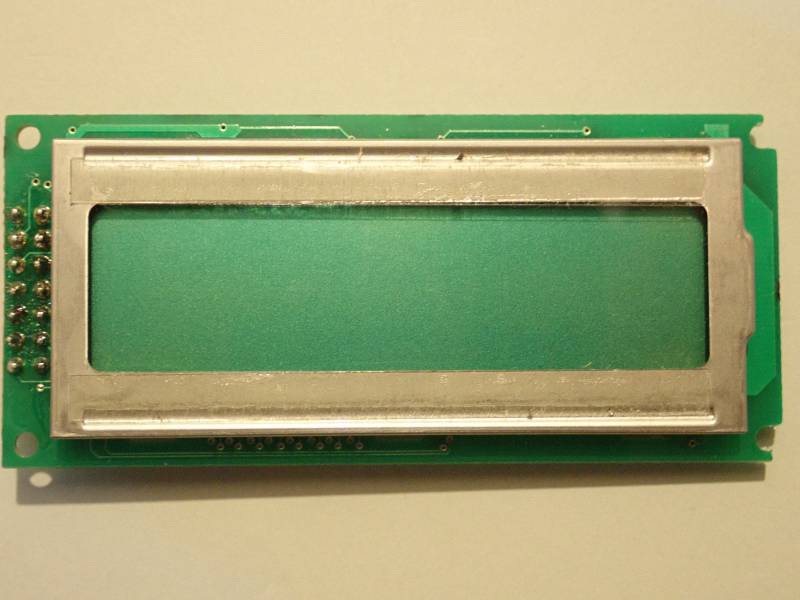

| Model | Data Vision DV-16236-03 S2RB |
| Manufacturer | Data Vision |
| Recovered from | Eftpos terminal |

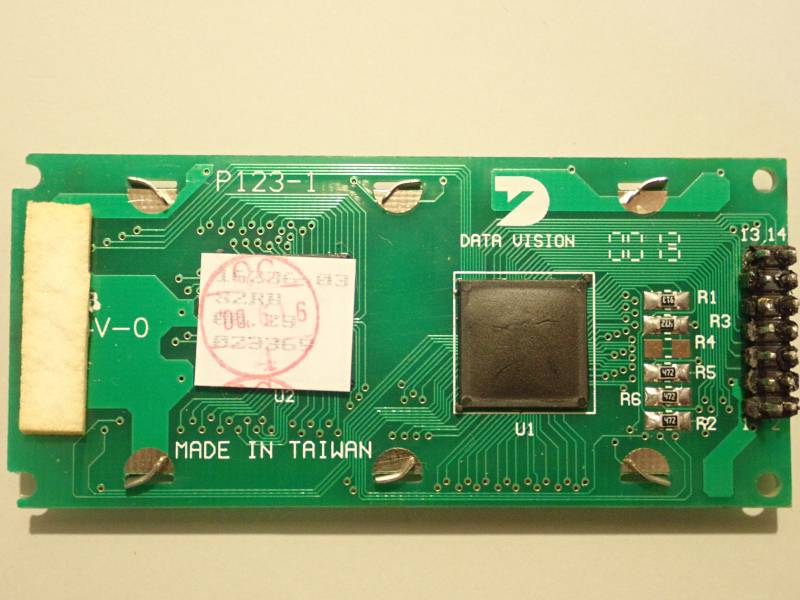

| Board IDs | 003 P123-1 |
| LCD type | positive |
| Polarizer type | reflective |
| Columns | 16 |
| Rows | 2 |

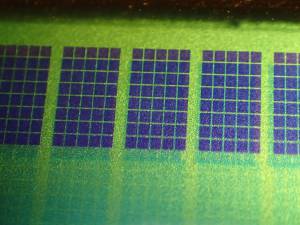

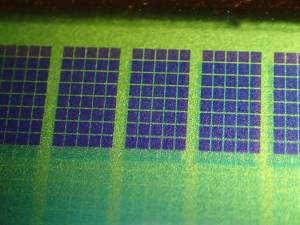

| Char matrix | 5×8 |
| Driver IC | KS-0066U1) or equivalent (covered in epoxy) |
| Backlight | - |

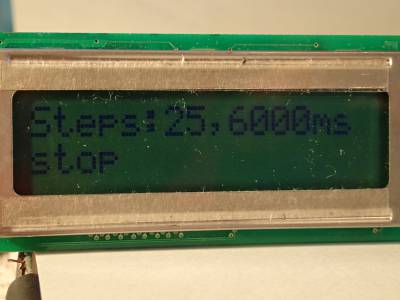

| Arduino driver | LiquidCrystal.h |
| Connector | 2 row pin header |
| Num Pins | 14 |
| Pin spacing | 0.1” |

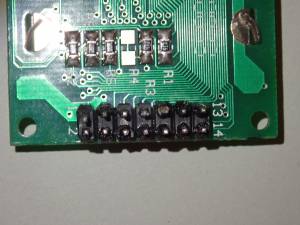

| Pinout of 2 row 14 pin header: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Arduino test rig 2) | Arduino test rig 3) | ||||||||
| Pin# | Label | LCD pin | Pin | colour | Pin# | Label | LCD pin | Pin | colour |
| 13 | DB6 | a4 | purple | 14 | DB7 | a3 | grey | ||
| 11 | DB4 | a2 | green | 12 | DB5 | a3 | blue | ||
| 9 | DB2 | 10 | DB3 | ||||||
| 7 | DB0 | 8 | DB1 | ||||||
| 5 | R/W | gnd | orange | 6 | E | a1 | yellow | ||
| 3 | Vee | 4) | brown | 4 | RS | a0 | yellow | ||
| 1 | Vss | gnd | black | 2 | Vdd | +5v | red | ||
| DV-16236-03 S2RB5) | |
|---|---|
| DV | Character LCM |
| 16 | Columns |
| 2 | Lines |
| 36 | Series number |
| 03 | Version number |
| S2 | Silver gray,STN |
| R | Reflective |
| B | Bottom view (6 o'clock) |
