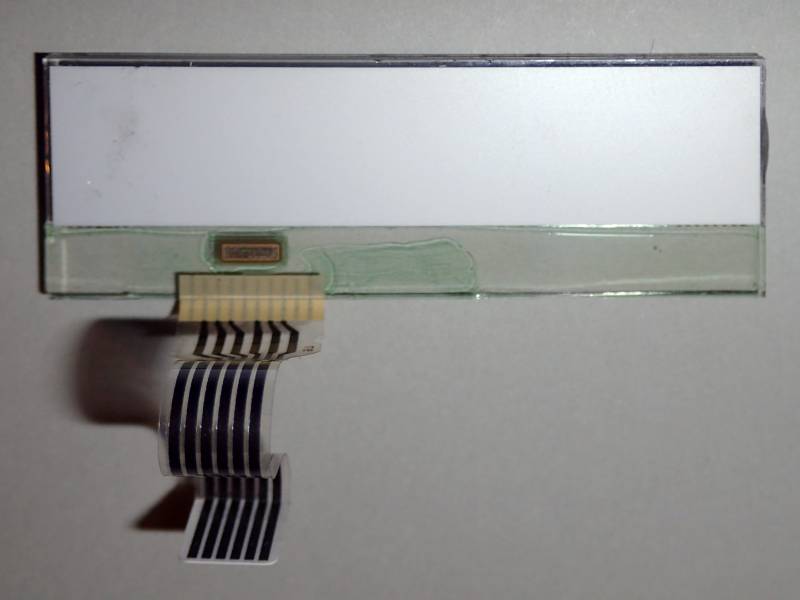

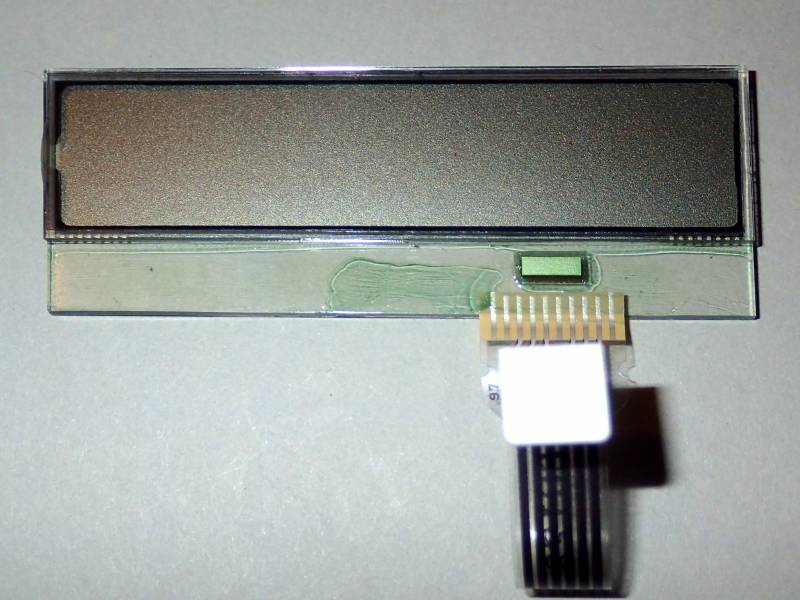

| LCD Description | |
|---|---|
| Model | L303646, OG128, 3D021 |
| Manufacturer | Brother |
| Recovered from | Brother Fax-685MC 1) |

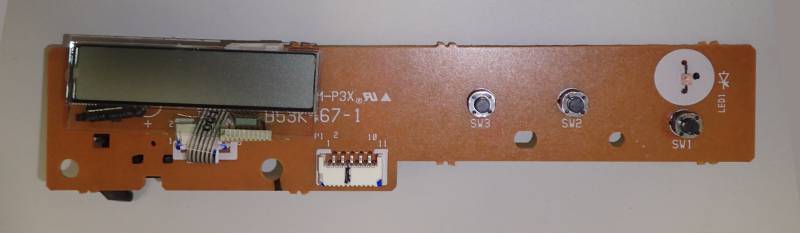

| Board IDs | B53K467-1 |
| LCD type | positive |
| Polarizer type | reflective |
| Columns | 16 |
| Rows | 1 |
| Char matrix | 5×8 |

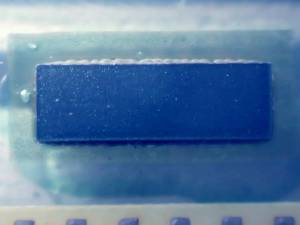

| Driver IC | Hitachi HD44780 compatible (CoG) |
| Backlight | - |
| Arduino driver | LiquidCrystal_SPI |
| Connector | PCB flex cable 2) |
| Num Pins | 6 |

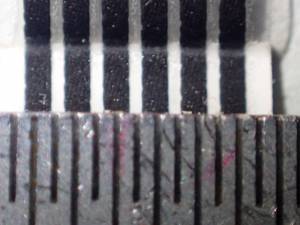

| Pin spacing | 1mm |
| Module size | 55 x20 mm |
| Connector pin-out | Arduino test rig | |
|---|---|---|
| Pin# | Label | Pin |
| 1 | Data | D9 |
| 2 | SCK | D5 |
| 3 | STB | D4 |
| 4 | V0 | Contrast adjustment 3) |
| 5 | Vdd | +5V |
| 6 | Vss | GND |
LCDs with the same cable and controller - g7a145 (orientation rotated 180degrees), b53K4631, a0L028, b53K4671, c7g045 (larger)
Datasheets

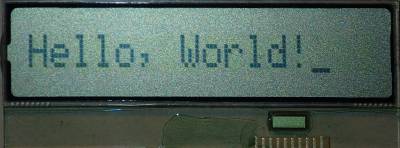

Examples :
