| LCD Description | |
|---|---|

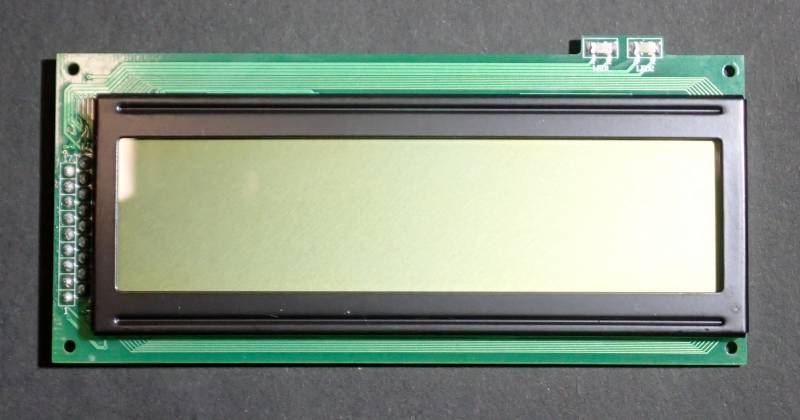

| Model | BTC-2403A |
| Manufacturer | Yeebo LCD Limited |
| Recovered from | LG-Nortel aria LDP-7024D phone |

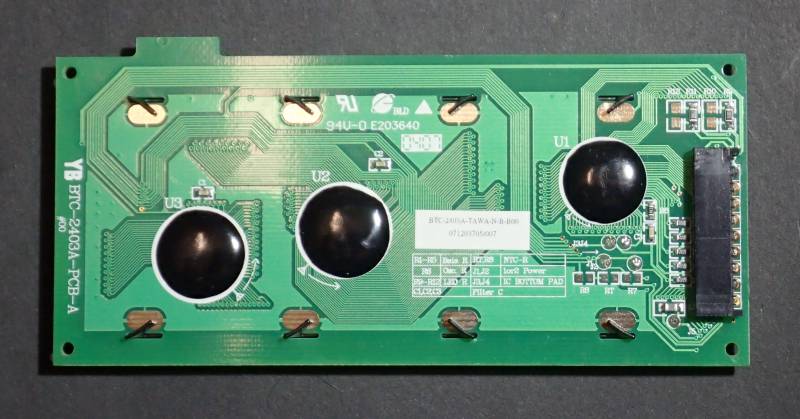

| Board IDs | YB BTC-2403A-PCB-A, BTC-2403A-TAWA-N-B-B00 |
| LCD type | positive |
| Polarizer type | reflective |
| Columns | 24 |
| Rows | 3 |
| Char matrix | 5×8 |

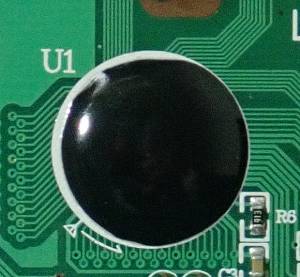

| Driver IC | |
| Backlight | - |
| Arduino driver | |
| Connector | PCB flex socket |
| Num Pins | 18 |
| Pin spacing | 1.25mm |
| Module size | mm |
| Connector pin-out | ||||
|---|---|---|---|---|
| Pin# | Ω to GND | Label | ||
| 1 | 0.0k | GND | 0V | |
| 2 | 4.8k | Vdd? | +5V | |
| 3 | 17.6k | Vo? | ||
| 4 | 7.4k | RS? | ||
| 5 | 7.4k | R/W? | ||
| 6 | 7.4k | E? | ||
| 7 | 6.3k | DB0? | ||
| 8 | 6.3k | DB1? | ||
| 9 | 6.3k | DB2? | ||
| 10 | 6.3k | DB3? | ||
| 11 | 6.3k | DB4? | ||
| 12 | 6.3k | DB5? | ||
| 13 | 6.3k | DB6? | ||
| 14 | 6.3k | DB7? | ||
| 15 | LED1 A | |||
| 16 | LED1 K | |||
| 17 | LED2 A | |||
| 18 | LED2 K | |||
Same pinout as NG LKD 8DS
