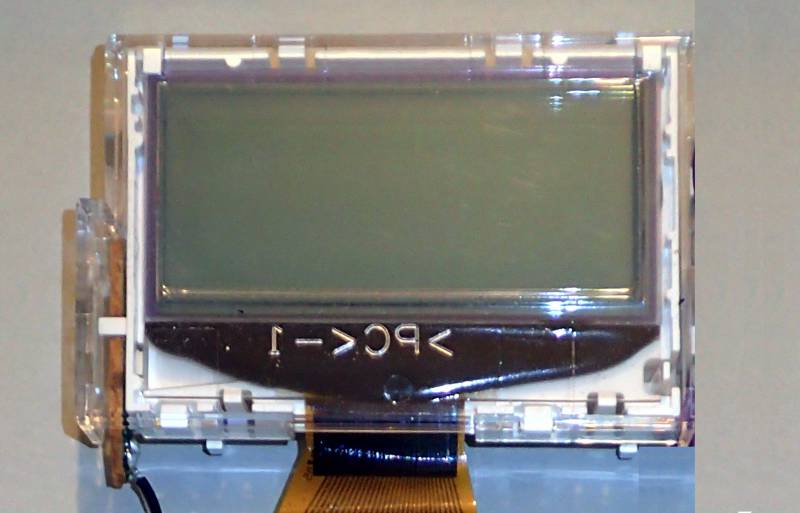

| LCD Description | |
|---|---|
| Model | HP LJ P3015 |
| Manufacturer | Hewlett Packard |
| Recovered from | HP Laserjet P3015 printer 1) |
| Board IDs | CN-0007-001 06817 |
| LCD type | positive |
| Polarizer type | transmissive |
| Columns | 160 pixels (20) 2) |
| Rows | 64 pixels (4) |
| Char matrix | 8×16 |
| Driver IC | (CoG), with BU6740AK interface board |
| Backlight | separate led |
| Arduino driver | SPI via BU6740AK |
| Connector | PCB flex cable |
| Num Pins | 30 |
| Pin spacing | 0.04” |

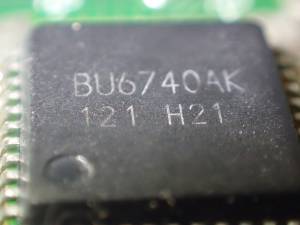

Untested. Interface board has a BU6740AK 44pin IC 3).
| Connector pin-out | Arduino test rig | ||
|---|---|---|---|
| Pin# | Label | Description | Pin |
| 1 | |||
| 2 | |||
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 | |||
| 8 | |||
| 9 | |||
| 10 | |||
| 11 | |||
| 12 | |||
| 13 | |||
| 14 | |||
| 15 | |||
| 16 | GND | ||
| 17 | |||
| 18 | |||
| 19 | |||
| 20 | |||
| 21 | |||
| 22 | |||
| 23 | |||
| 24 | |||
| 25 | |||
| 26 | |||
| 27 | GND | ||
| 28 | |||
| 29 | |||
| 30 | |||
| CN1 (J8011) | |
|---|---|
| Pin | Label |
| 1 | GND |
| 2 | Vcc1(+3.3V) |
| 3 | FPO |
| 4 | FPI |
| 5 | FPCK |
| 6 | /FPCS |
| 7 | GND |
| 8 | Vcc2(+5V) |
| CN3 (backlight) | |
|---|---|
| Pin | Label |
| 1 | +5V |
| 2 | TR1 |
Examples :

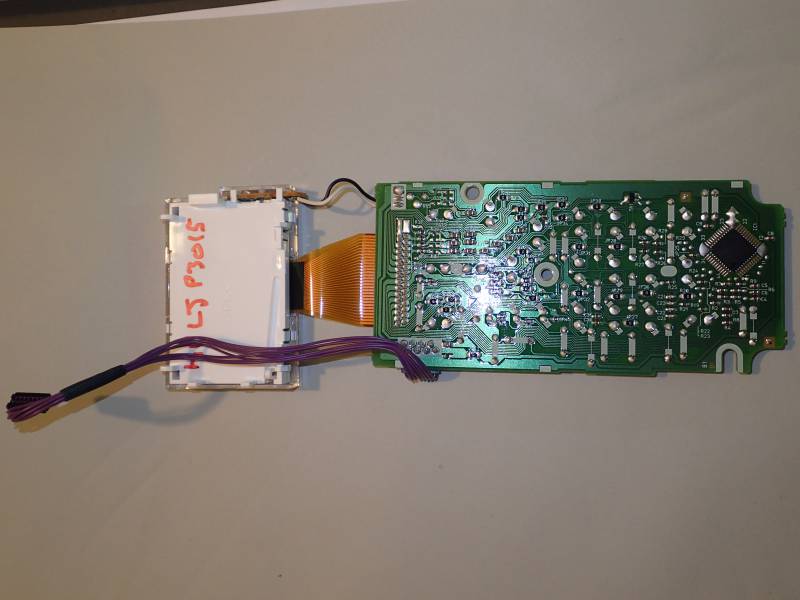

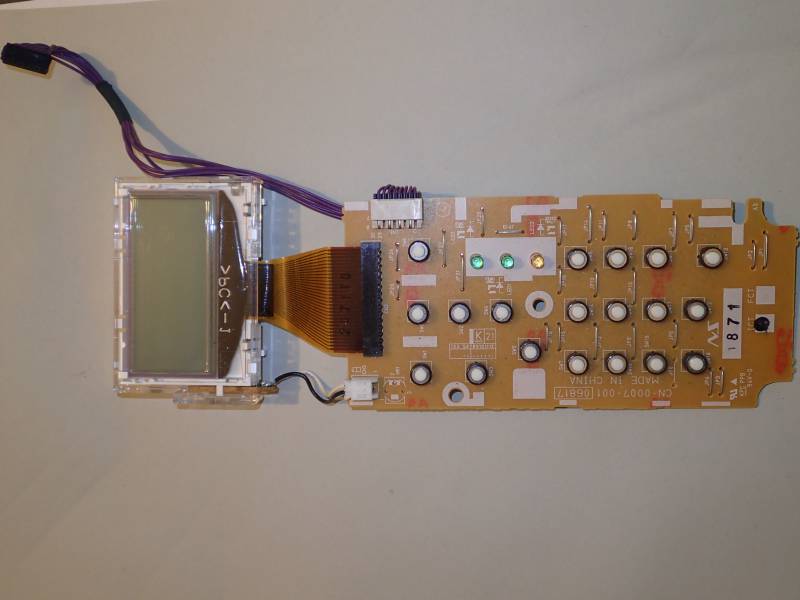

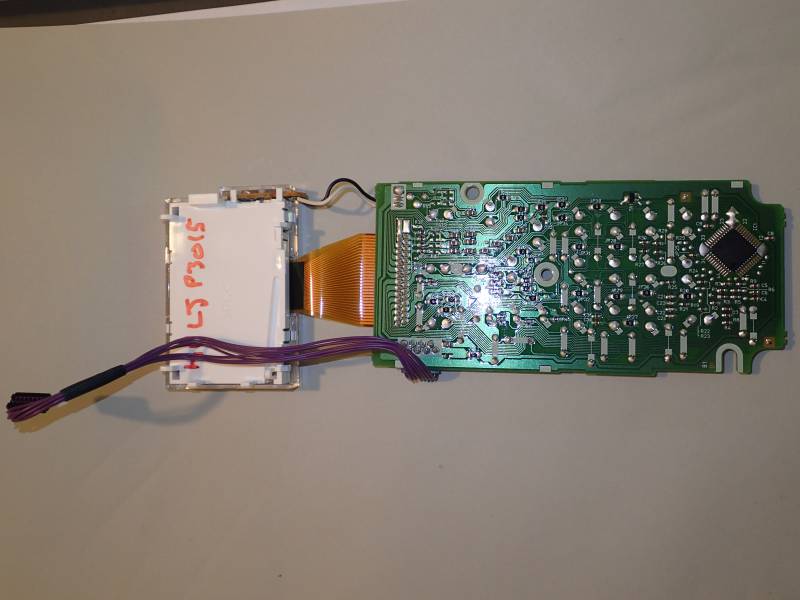

| Recovered from HP Laserjet P3015 printer |
|---|
