P16063

LCD Description
ModelP16063
ManufacturerOrion
Recovered from
Board IDsOrion P16063 Korea, 6917HH
LCD typepositive
Polarizer typereflective
Columns161)
Rows1
Char matrix5×8
Driver ICHD44780A00
Backlight-
Arduino driverLiquidCrystal.h
Connector
Num Pins14
Pin spacing0.1”
Module sizemm
Connector pin-out Arduino test rig
Pin#LabelDescription Pin
1VssGroundGND
2VddPower supply for logic+5V
3V0Contrast adjustment2)
4RSData/Instruction select signal8
5R/WRead/Write select signalGND
6EEnable signal9
7DB0Data bus line
8DB1Data bus line
9DB2Data bus line
10DB3Data bus line
11 DB4 Data bus line4
12 DB5 Data bus line5
13 DB6 Data bus line6
14 DB7 Data bus line7




Examples :

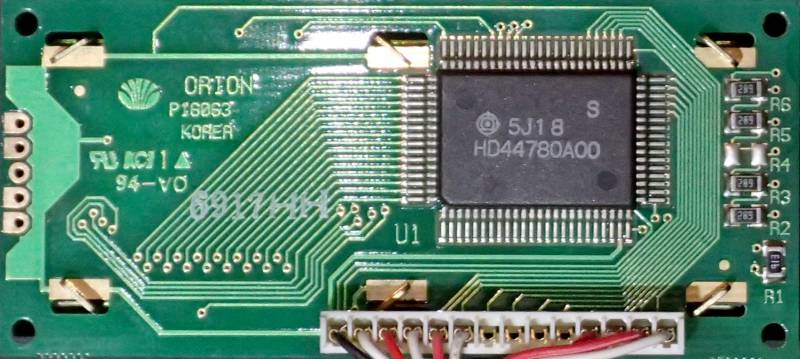

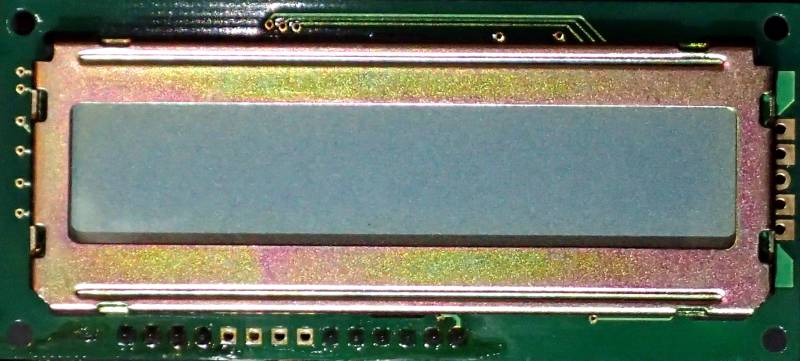

P16063 front P16063 back

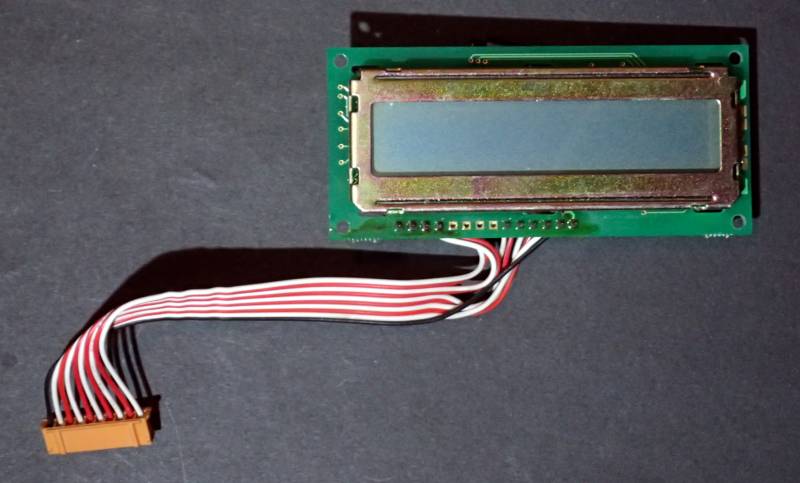

P16063 overview

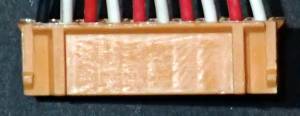

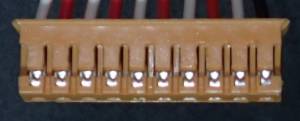

P16063 connectorP16063 connector

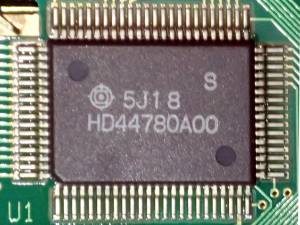

P16063 chip

P16063 character set
P16063 character set
P16063 character set
P16063 character set
P16063 character set
P16063 character set
P16063 character set
P16063 character set
P16063 character set
P16063 character set
P16063 character set
P16063 character set
P16063 character set
P16063 character set
P16063 character set
P16063 character set

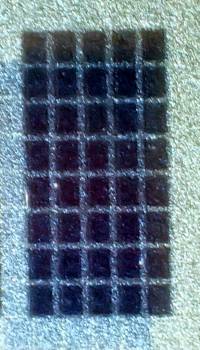

P16063 pixel layout

1) addressed as 2 rows of 8 characters
2) connect to potentiometer between Vdd and GND
