1602F

LCD Description
Model1602F, 126-00065-00
ManufacturerWinstar
Recovered fromPulsar 1500 UPS
Board IDsLYNX LCD 098-02026-00, 00100575991053
LCD typepositive
Polarizer typetransflective
Columns16
Rows2
Char matrix5×8
Driver ICST7066 1)
Backlightblue LED 2)
Arduino driverLiquidCrystal.h
Connectorpin header
Num Pins16
Pin spacing0.1”
Connector pin-out Arduino test rig
Pin#LabelDescription Pin
1 Vss GroundGND
2 Vdd Power supply for logic+5V
3 Vo Contrast adjustment3)
4 RS Data/Instruction select signal8
5 R/W Read/Write select signalGND
6 E Enable signal9
7 DB0 Data bus line
8 DB1 Data bus line
9 DB2 Data bus line
10 DB3 Data bus line
11 DB4 Data bus line4
12 DB5 Data bus line5
13 DB6 Data bus line6
14 DB7 Data bus line7
15 A Power supply for B/L +4V
16 K Power supply for B/L -0v



Datasheets

Examples :

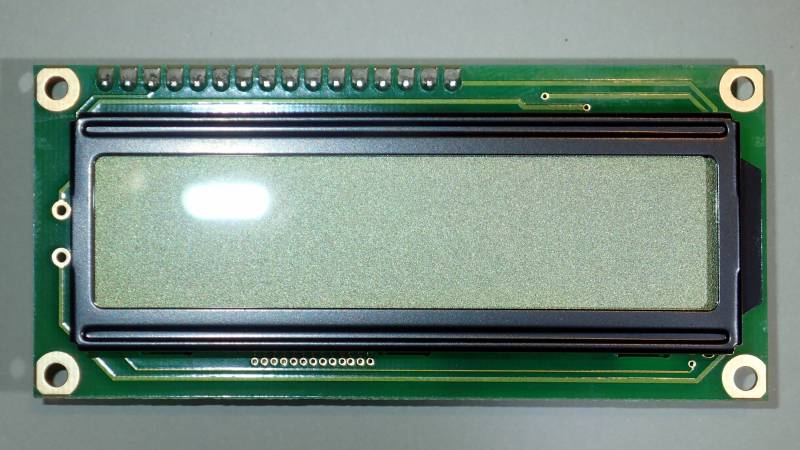

1602F front

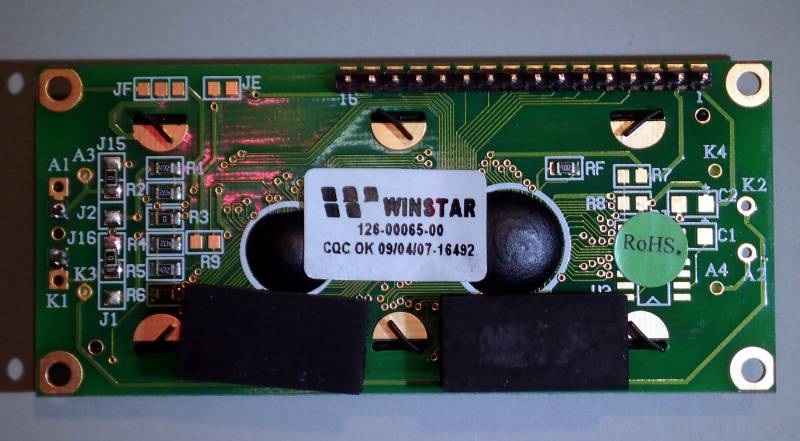

1602F back

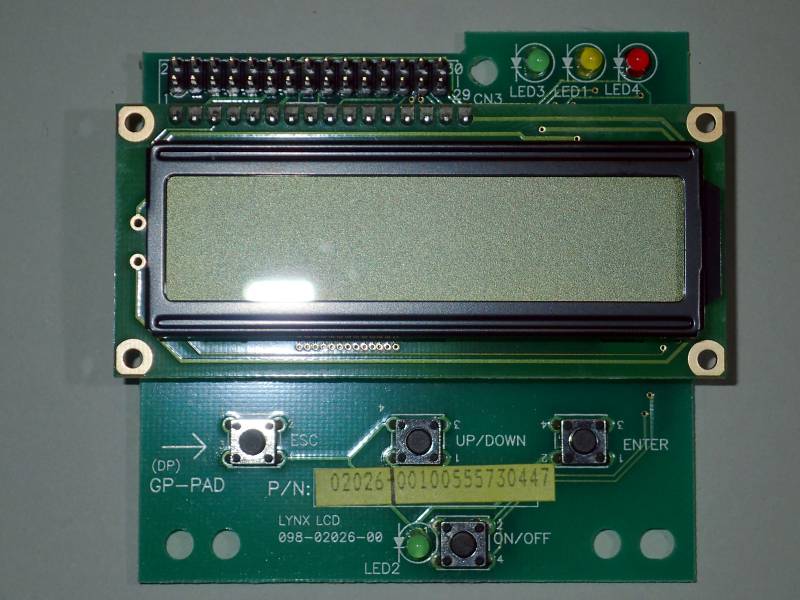

1602F overview with board

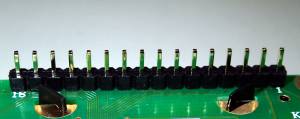

1602F connector

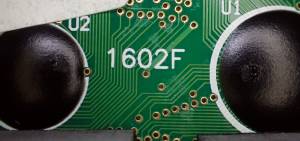

1602F chip

1602F character set
1602F character set
1602F character set
1602F character set
1602F character set
1602F character set
1602F character set

2) draws about 80mA at 4V
3) connect to potentiometer between Vcc and GND
