| LCD Description | |
|---|---|
| Model | MFC-685CW |
| Manufacturer | Brother |
| Recovered from | Brother MFC-685CW printer 1) |

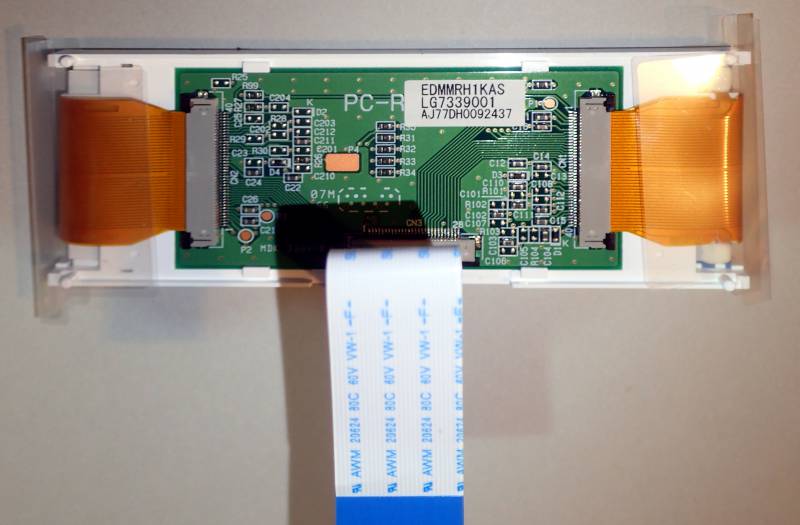

| Board IDs | EDMMRH1KAS, LG7339001, AJ77DH0092437, PC-R???? |
| LCD type | |
| Polarizer type | |
| Columns | 3.3” wide (RGB) |
| Rows | |
| Char matrix | |
| Driver IC | |
| Backlight | Y |
| Arduino driver | |

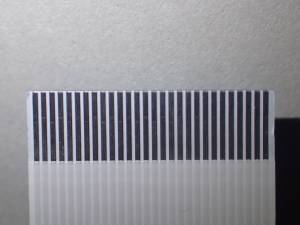

| Connector | PCB flex cable |
| Num Pins | 28 |

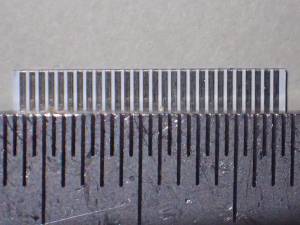

| Pin spacing | 0.5mm |
| Connector pin-out | Arduino test rig | ||
|---|---|---|---|
| Pin# | Label | Description | Pin |
| 1 | DB15 | ||
| 2 | DB14 | ||
| 3 | DB13 | ||
| 4 | DB12 | ||
| 5 | Vdd | ||
| 6 | Vss | ||
| 7 | DB11 | ||
| 8 | DB10 | ||
| 9 | DB9 | ||
| 10 | DB8 | ||
| 11 | CS1b | ||
| 12 | RSTb | ||
| 13 | RS | ||
| 14 | WDb | ||
| 15 | RDb | ||
| 16 | DB0 | ||
| 17 | DB1 | ||
| 18 | DB2 | ||
| 19 | DB3 | ||
| 20 | DB4 | ||
| 21 | DB5 | ||
| 22 | DB6 | ||
| 23 | DB7 | ||
| 24 | LED-Vss | ||
| 25 | Vss | ||
| 26 | Vdd | ||
| 27 | LED-V | ||
| 28 | Vss | ||

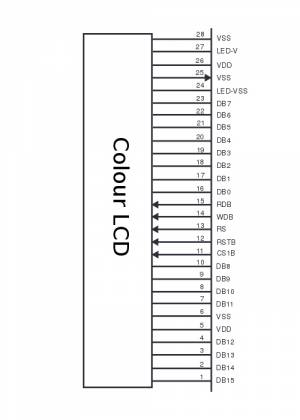

- MFC-685CW LCD schematic:

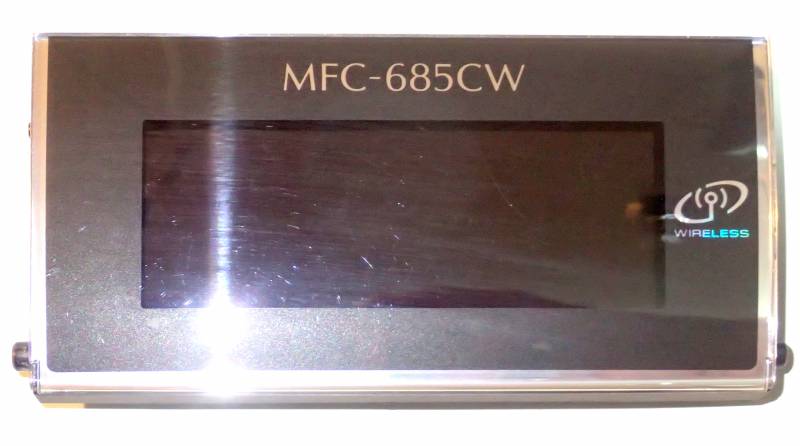

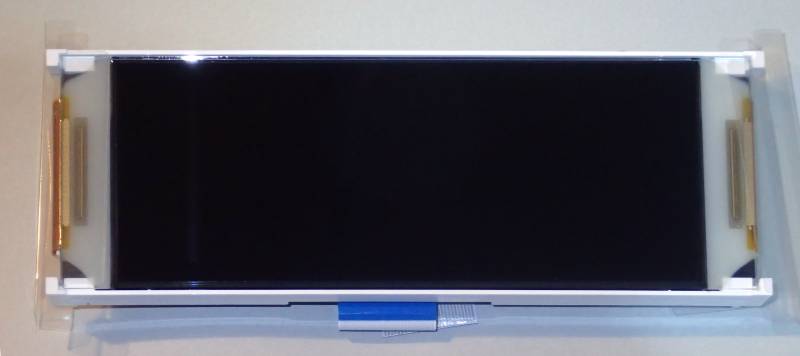

Examples :
