| LCD Description | |
|---|---|

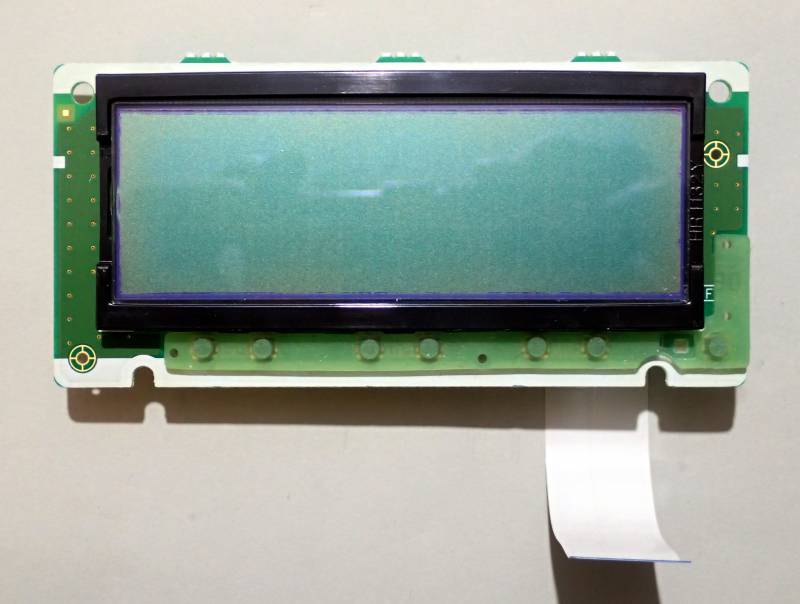

| Model | PSUP1178ZA |
| Manufacturer | Panasonic |
| Recovered from | Panasonic KX-T7433 phone |

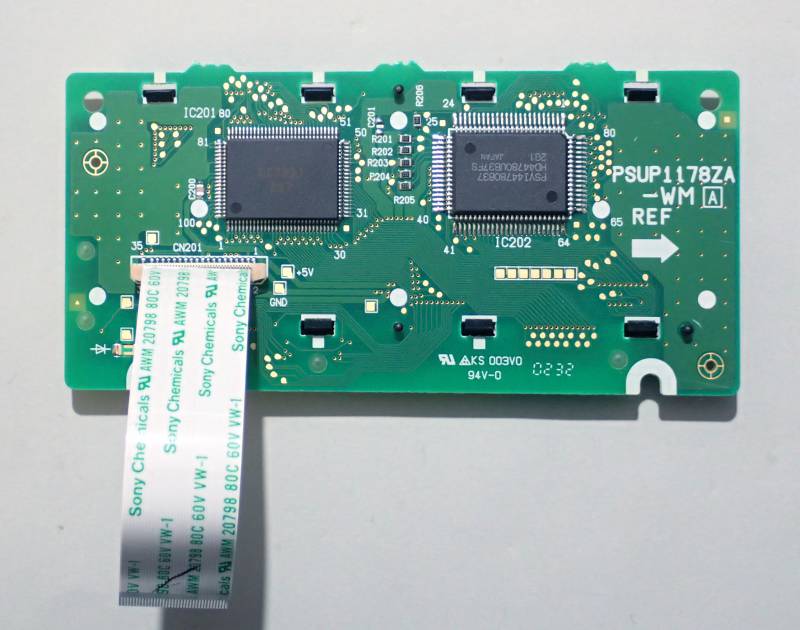

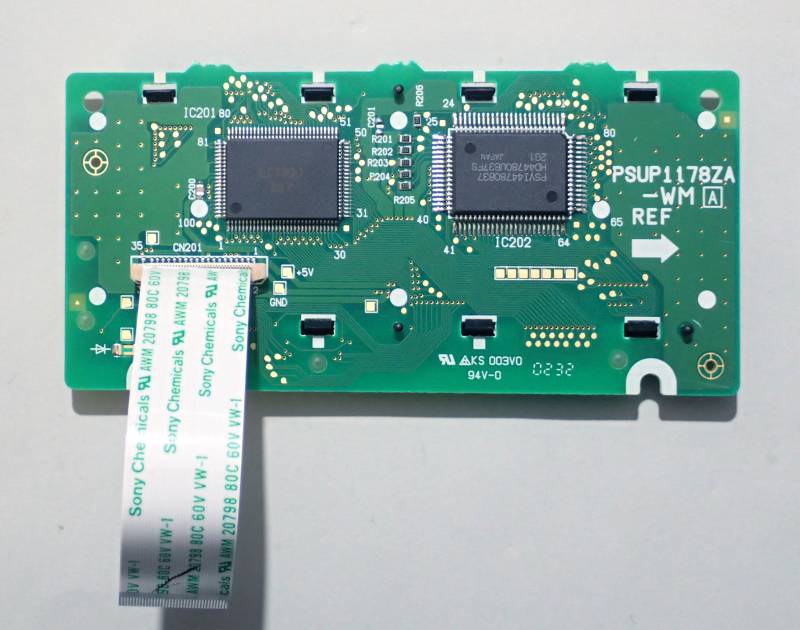

| Board IDs | PSUP1178ZA-WM A, KS 003V0 94-0 , 0232 |
| LCD type | posiitive |
| Polarizer type | reflective |

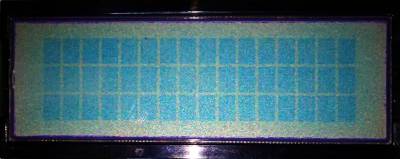

| Columns | 16 |
| Rows | 3 |

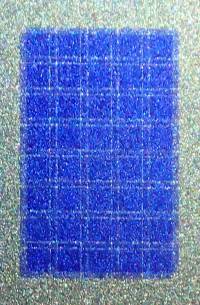

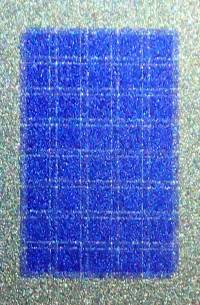

| Char matrix | 5×8 |

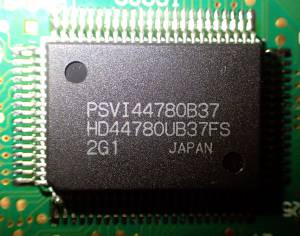

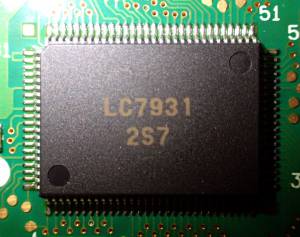

| Driver IC | Hitachi HD44780UB37FS |
| Backlight | - |
| Arduino driver | LiquidCrystal.h |
| Connector | PCB flex cable |
| Num Pins | 36 |

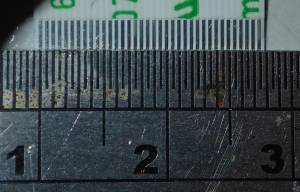

| Pin spacing | 0.5mm |

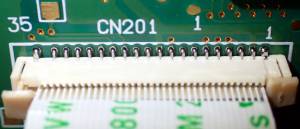

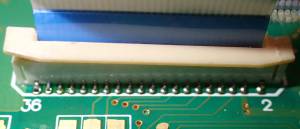

| Connector CN201 pin-out | Arduino test rig | ||
|---|---|---|---|
| Pin# | IC pin | Label | Pin |
| 1 | 33 | +5V | |
| 2 | 30 | V5, 0V to -5V? 0.13V measured | |
| 3 | LED D201 A | ||
| 4 | LED D201 K | ||
| 5 | |||
| 6 | 23 | GND | |
| 7 | 43 | D4 | |
| 8 | 44 | D5 | |
| 9 | 45 | D6 | |
| 10 | 46 | D7 | |
| 11 | 23 | GND | |
| 12 | |||
| 13 | 37 | R/W | |
| 14 | 38 | E | |
| 15 | |||
| 16 | 36 | RS | |
| 17 | 33 | +5V | |
| 18 | |||
| 19 | |||
| 20 | 23 | GND | |
| 21 | |||
| 22 | |||
| 23 | SW50, SW51 (shift, menu1) row | ||
| 24 | SW52 (menu2) row | ||
| 25 | SW53 (menu3) row | ||
| 26 | SW51, SW52, SW53 col | ||
| 27 | SW50 (shift) col | ||
| 28 | |||
| 29 | |||
| 30 | |||
| 31 | |||
| 32 | |||
| 33 | |||
| 34 | |||
| 35 | |||
| 36 | |||

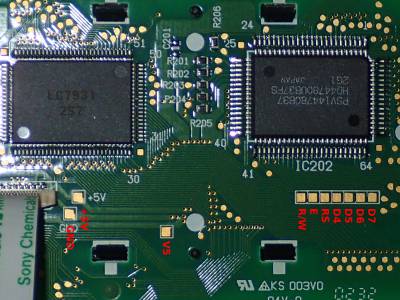

| 7 pad test strip pin-out 1) | |||
|---|---|---|---|
| Pin# | IC pin | Label | CN201 Pin |
| 1 | 37 | R/W | 15 |
| 2 | 38 | E | 14 |
| 3 | 36 | RS | 16 |
| 4 | 43 | D4 | 7 |
| 5 | 44 | D5 | 8 |
| 6 | 45 | D6 | 9 |
| 7 | 46 | D7 | 10 |
| 2) | 30 | V5 | |

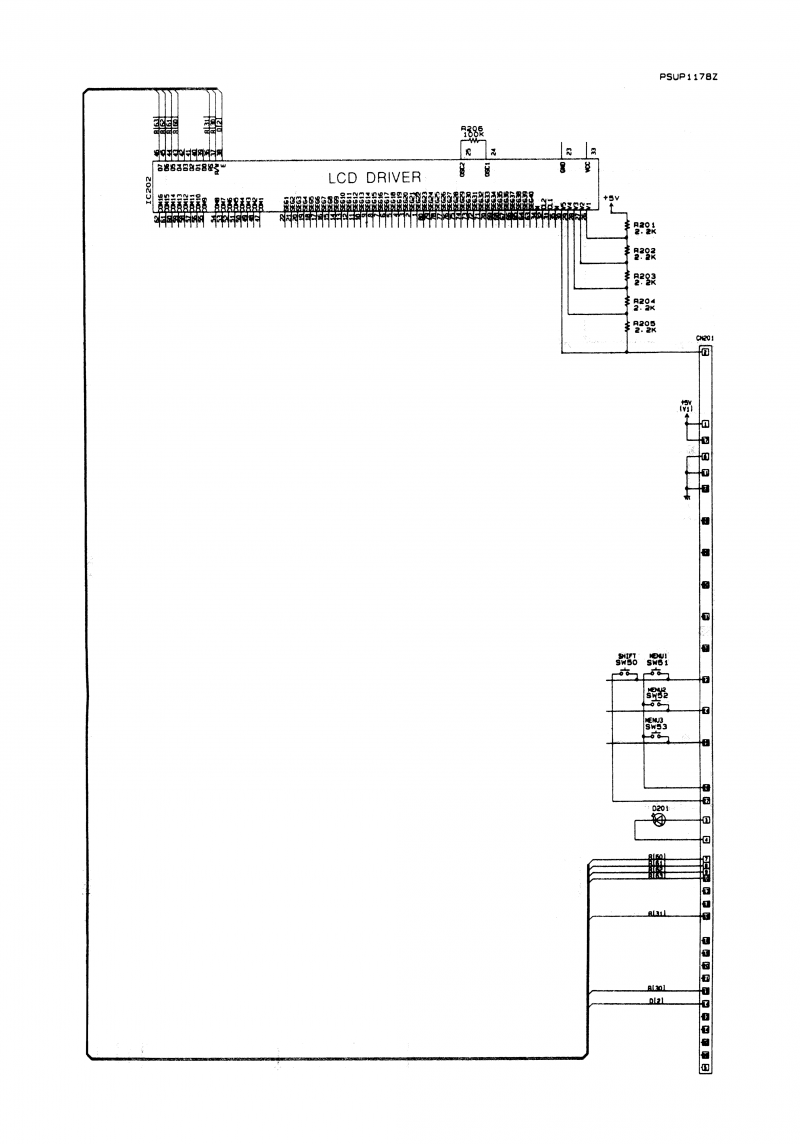

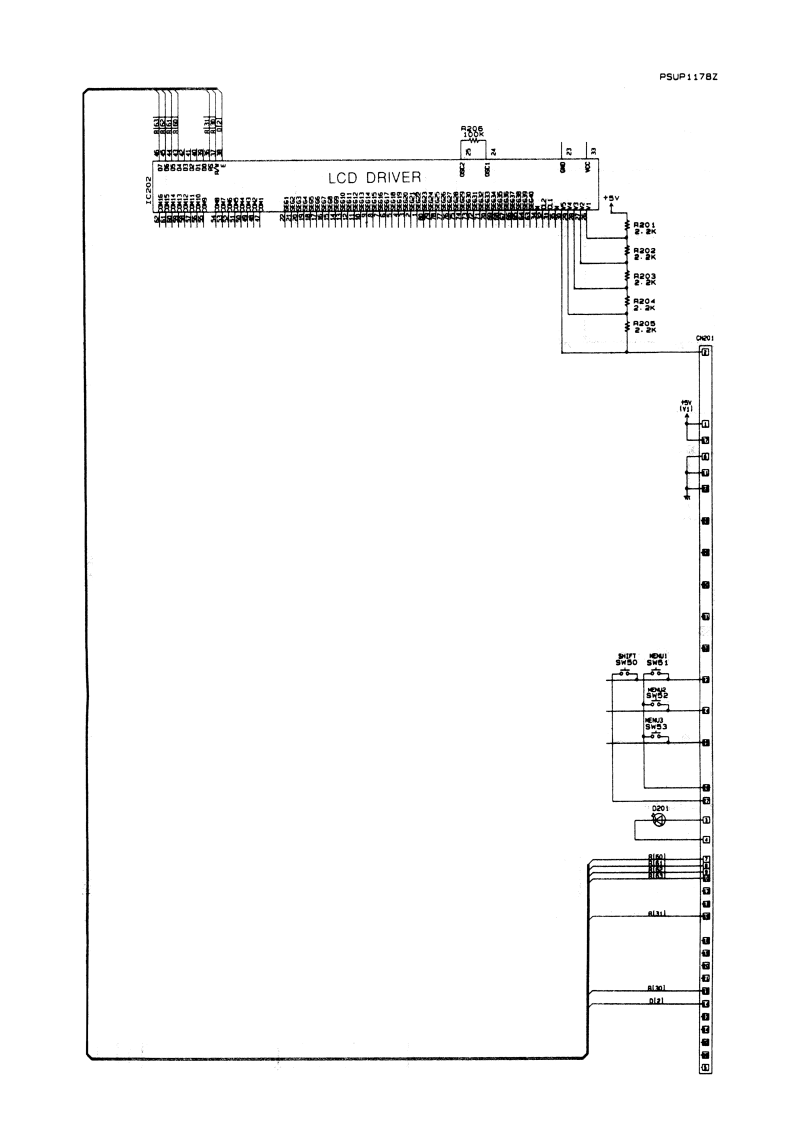

- PSUP1178ZA LCD schematic:
Examples :
