LCD module data
Numeric
Character
Mixed
- ≡ Uniden FP203 ✘
- ≡ Uniden FP204 ✘
- ≡ VIP89Z G-Code ✘
Graphic
key: ≡ parallel, ↔ serial, ~ LVDS, _ unknown, ✘ discarded as not useful
Resources
| LCD Description | |
|---|---|
| Model | HP PSC1610 |
| Manufacturer | Hewlett Packard |
| Recovered from | HP PSC1610 printer |
| Board IDs | Q5584-60156 B, Q5585-60151 B |
| LCD type | |
| Polarizer type | |
| Columns | 16 |
| Rows | 2 |
| Char matrix | ? |
| Driver IC | ? |
| Backlight | - |
| Arduino driver | ? |
| Connector | PCB flex cable |
| Num Pins | 12 |
| Pin spacing | 0.04” |
Not tested.
| Connector pin-out | Arduino test rig | ||
|---|---|---|---|
| Pin# | Label | Description | Pin |
| 1 | |||
| 2 | |||
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 | |||
| 8 | |||
| 9 | |||
| 10 | |||
| 11 | |||
| 12 | |||
| Top view (track side) of flex PCB connector | |||||
|---|---|---|---|---|---|
| Arduino test rig | |||||
| Label | Pin# | Pin# | Label | ||
| 1 | |||||
| 2 | |||||
| 3 | gnd? | ||||
| Vcc | 4 | ||||
| 5 | gnd? | ||||
| 6 | |||||
| 7 | |||||
| 8 | |||||
| 9 | |||||
| 10 | |||||
| 11 | |||||
| 12 | |||||
∧
| LCD
|
| |
| |
| | flex cable bottom view (contact side)
| |
| |
|_|_|_|_|_|_|_|_|_|_|_|_|
12 1
Additional info

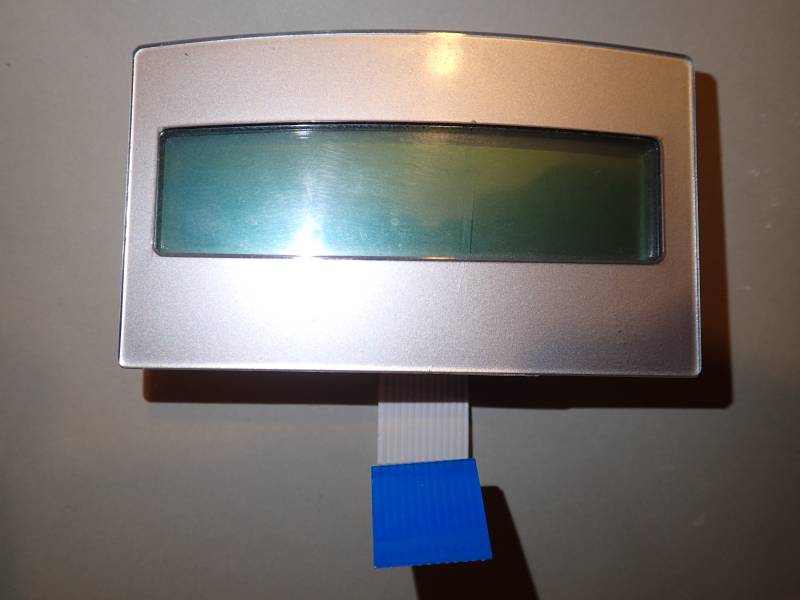

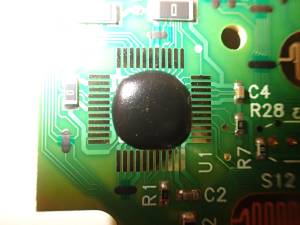

Examples from HP PSC1610 printer :
