PFUP1188YA

LCD Description
ModelM220
ManufacturerClover Display Ltd
Recovered fromPanasonic KX-FP85 fax
Board IDsPFUP1188YA, Clover Display Ltd, M220 PCB V1.0, MC1368C, Multi
LCD typepositive
Polarizer typereflective
Columns16
Rows1
Char matrix5×7
Driver ICHitachi HD44780 compatible (covered in epoxy)
Backlight-
Arduino driverLiquidCrystal.h
Connectorpins
Num Pins10
Pin spacing0.1”
Module size72mm x 27mm
Connector pin-out Arduino test rig
Pin#LabelPincolour
1GND
2+5V
3V0
4RS
5R/W
6E
7D4
8D5
9D6
10D7

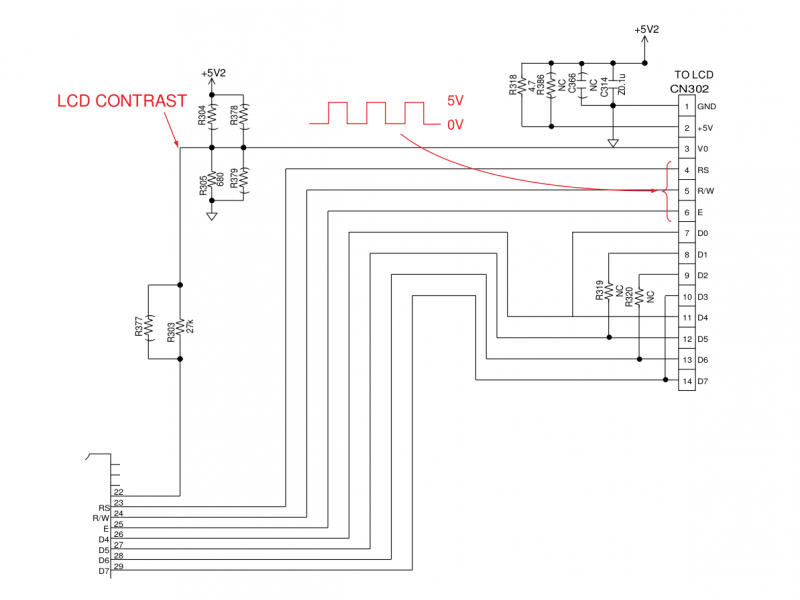

  • M220 LCD schematic:

PFUP1188YA circuit


Examples :

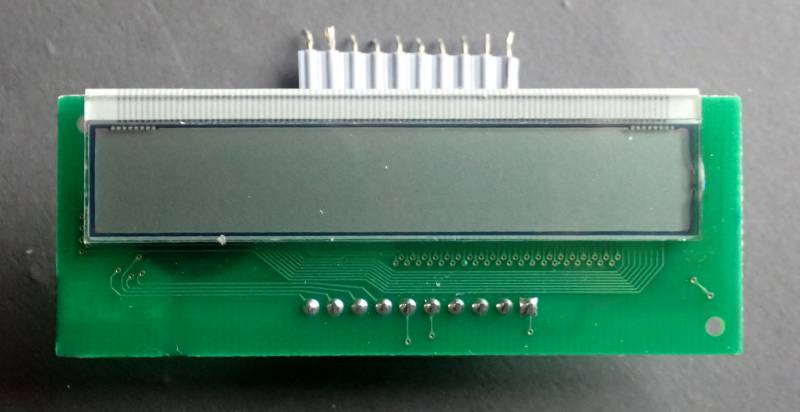

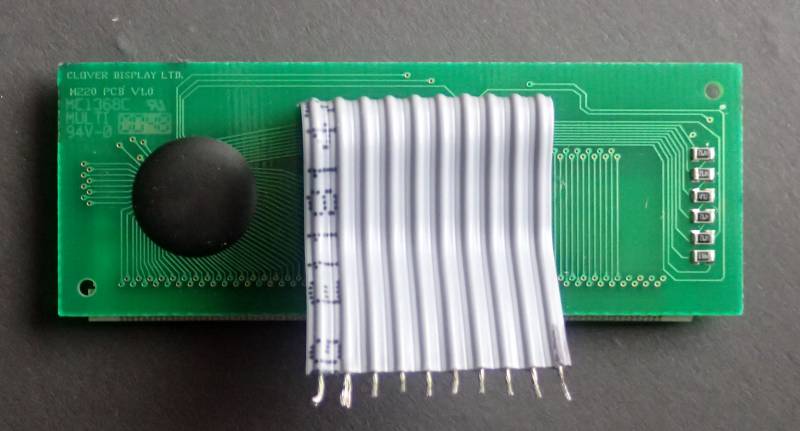

PFUP1188YA front PFUP1188YA back

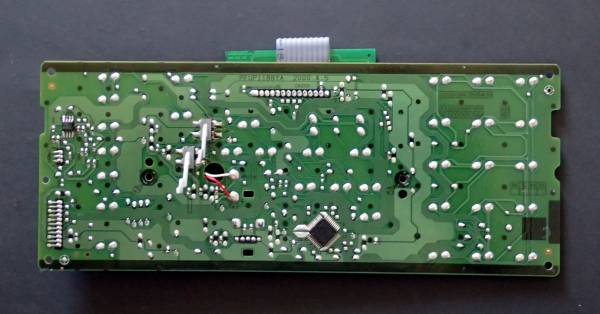

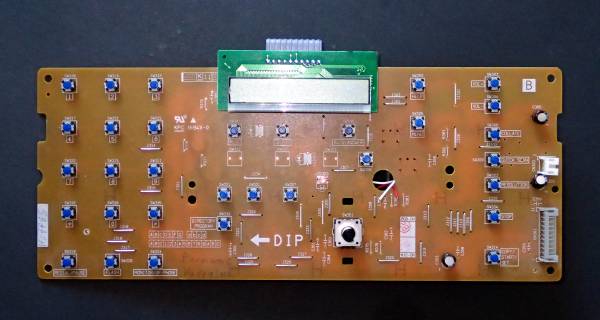

PFUP1188YA overview with board PFUP1188YA overview with board

PFUP1188YA character set
PFUP1188YA character set
PFUP1188YA character set
PFUP1188YA character set
PFUP1188YA character set
PFUP1188YA character set
PFUP1188YA character set
PFUP1188YA character set
PFUP1188YA character set
PFUP1188YA character set
PFUP1188YA character set
PFUP1188YA character set
PFUP1188YA character set
PFUP1188YA character set
PFUP1188YA character set
PFUP1188YA character set

PFUP1188YA examples
PFUP1188YA examples
PFUP1188YA examples

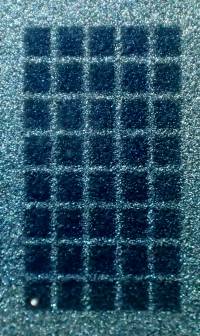

PFUP1188YA pixel layout
