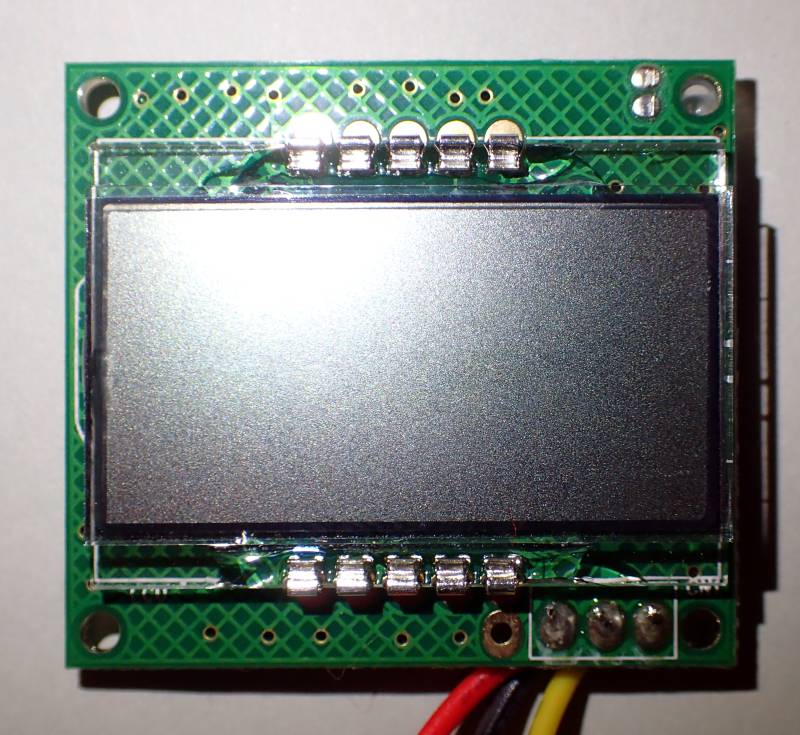

| LCD Description | |
|---|---|
| Model | AWQ-105 |
| Manufacturer | Tens Plus Industrial Co. |
| Recovered from | AWQ-105 PRO |
| Board IDs | - |
| LCD type | positive |
| Polarizer type | reflective |
| Columns | 3 |
| Rows | 1 |
| Char matrix | 7 segment |
| Driver IC | |
| Backlight | - |
| Arduino driver | blink |
| Connector | PCB pads |
| Num Pins | 4 |
| Pin spacing | 0.1“ |

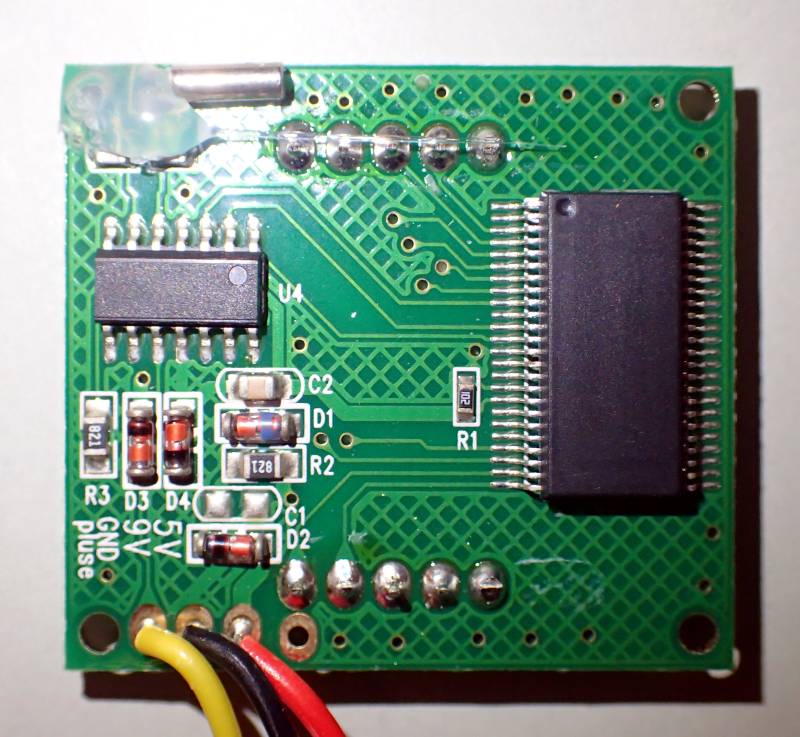

| Connector pin-out | |
|---|---|
| Pin# | Label |
| 1 | Pulse |
| 2 | GND |
| 3 | 9V |
| 4 | 5V |
Three digit frequency counter. 9V or 5V power supply. Input can be up to 5V pulses of long or short duration.

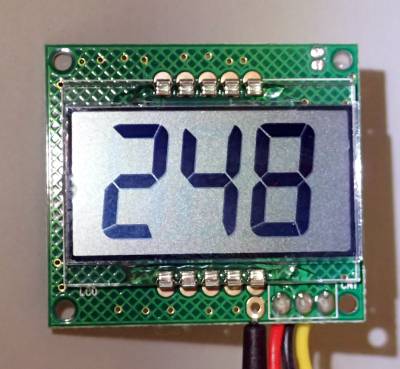

Examples
