LCD Description |
|
|---|---|
| Model | PTP008471 |
| Manufacturer | Kenwood |
| Recovered from | DPX-MP4050B |
| Columns | 8 |
| Rows | 1 |
| Char matrix | 5×7 |

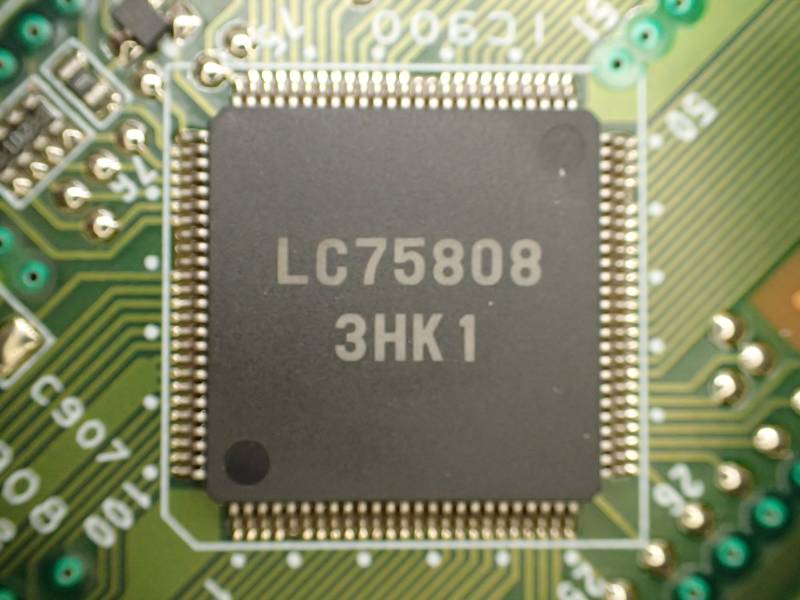

| Driver IC | LC75808 |
| Backlight | - |
| Arduino driver | |

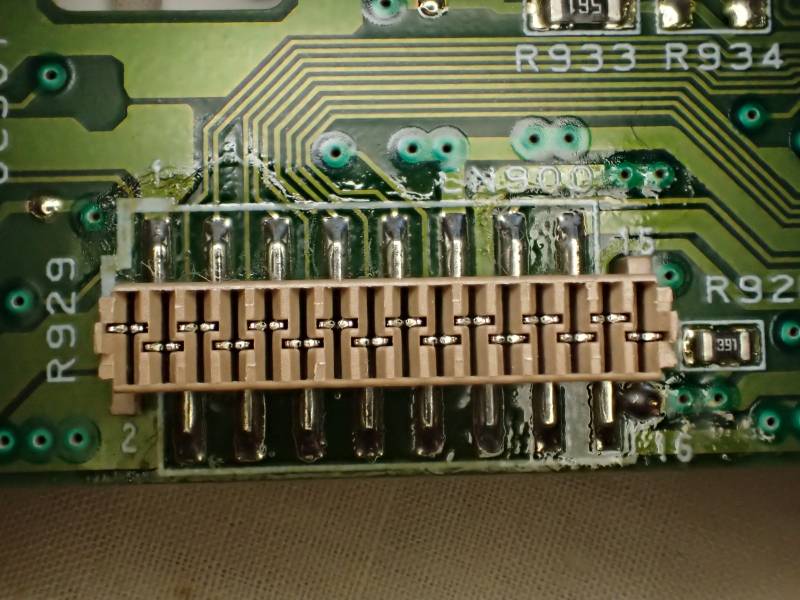

| Connector | |
| Num Pins | 16 |
| Pin spacing | 0.05“ |
| Arduino test rig 1) | ||||
|---|---|---|---|---|
| Pin# | IC pin | Label | Pin | colour |
| 1 | D GND | |||
| 2 | 99 | CLK | ||
| 3 | 100 | DO | ||
| 4 | 97 | DI | ||
| 5 | 96 | INH | ||
| 6 | 98 | CE | ||
| 7 | 7 | LED GRN | ||
| 8 | 8 | LED BLU | ||
| 9 | 9 | LED RED | ||
| 10 | RST-SW | |||
| 11 | ILL GND | |||
| 12 | P GND | |||
| 13 | REMO | |||
| 14 | BU5V | |||
| 15 | LED11V | |||
| 16 | ILLUMI | |||
Related datasheets
Examples :
1)
reminder for my personal testing, not useful for anyone else!
