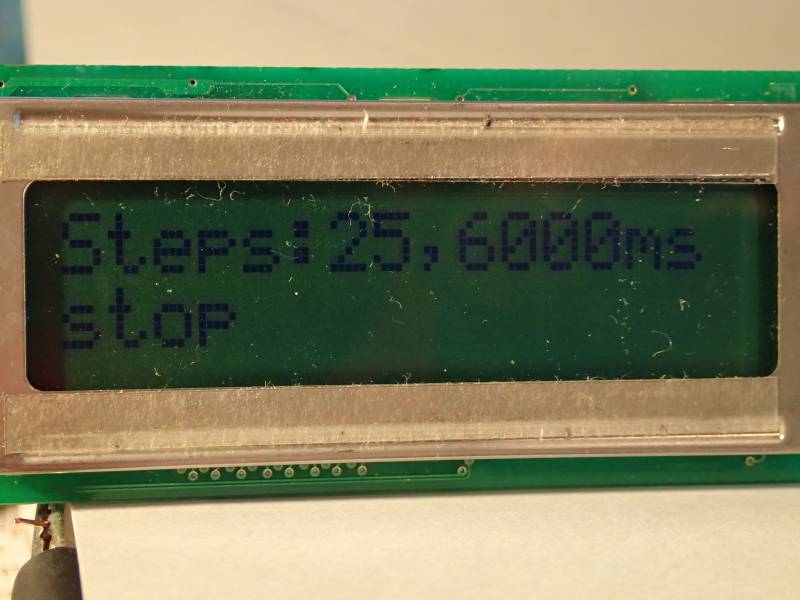

| Model | Data Vision 003 P123-1 |
|---|---|
| Manufacturer | Data Vision |
| Recovered from | Eftpos terminal |
| Columns | 16 |
| Rows | 2 |

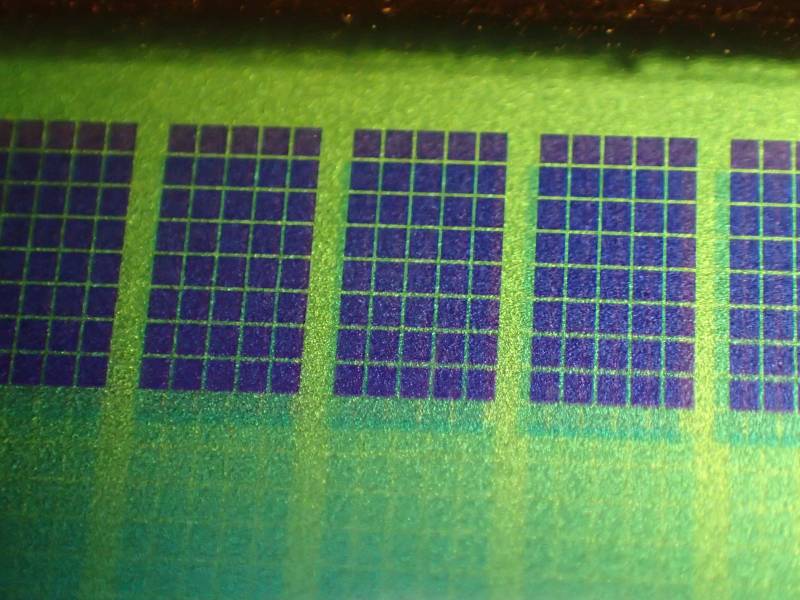

| Char matrix | 5×8 |
| Driver IC | covered in epoxy |
| Backlight | - |
| Arduino driver | hd44780 |
| Connector | 2 row pin header |
| Num Pins | 14 |
| Pin spacing | 0.1 |
| Arduino test rig 1) | ||||
|---|---|---|---|---|
| Pin# | IC pin | Label | Pin | colour |
| 1 | ||||
| 2 | ||||
| 3 | ||||
| 4 | ||||
| 5 | ||||
| 6 | ||||
| 7 | ||||
| 8 | ||||
| 9 | ||||
| 10 | ||||
| 11 | ||||
| 12 | ||||
| 13 | ||||
| 14 | ||||

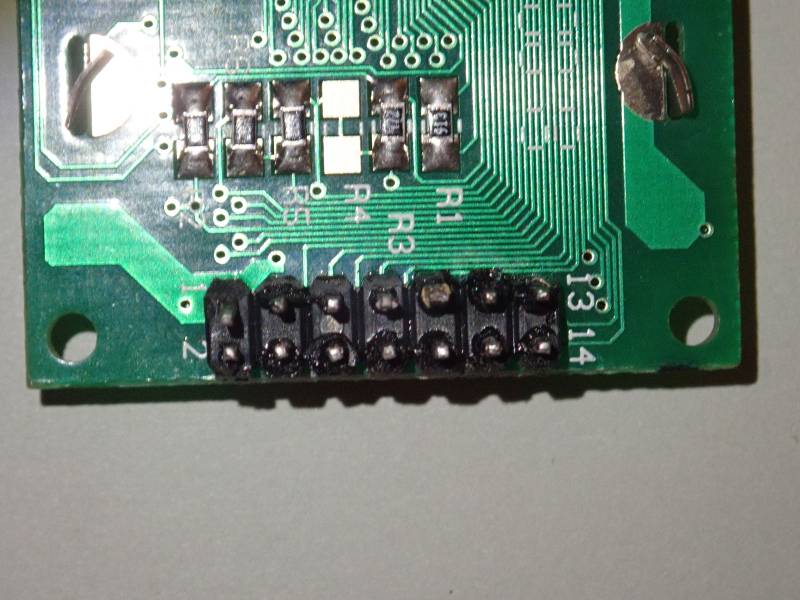

| Pinout of 2 row 14 pin header: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Arduino test rig 2) | Arduino test rig 3) | ||||||||
| Pin# | Label | LCD pin | Pin | colour | Pin# | Label | LCD pin | Pin | colour |
| 13 | d6 | a4 | purple | 14 | d7 | a3 | grey | ||
| 11 | d4 | a2 | green | 12 | d5 | a3 | blue | ||
| 9 | d2 | 10 | d3 | ||||||
| 7 | d0 | 8 | d1 | ||||||
| 5 | r/w' | gnd | orange | 6 | e | a1 | yellow | ||
| 3 | v5 | 4) | brown | 4 | rs | a0 | yellow | ||
| 1 | gnd | gnd | black | 2 | vcc | +5v | red | ||
Examples recovered from Hypercom Model S1 Eftpos terminal :
