This is an old revision of the document!
| Manufacturer | |
|---|---|
| Model | MGCS μPD7228 |
| Recovered from | |
| Columns | 20 |
| Rows | 2 |

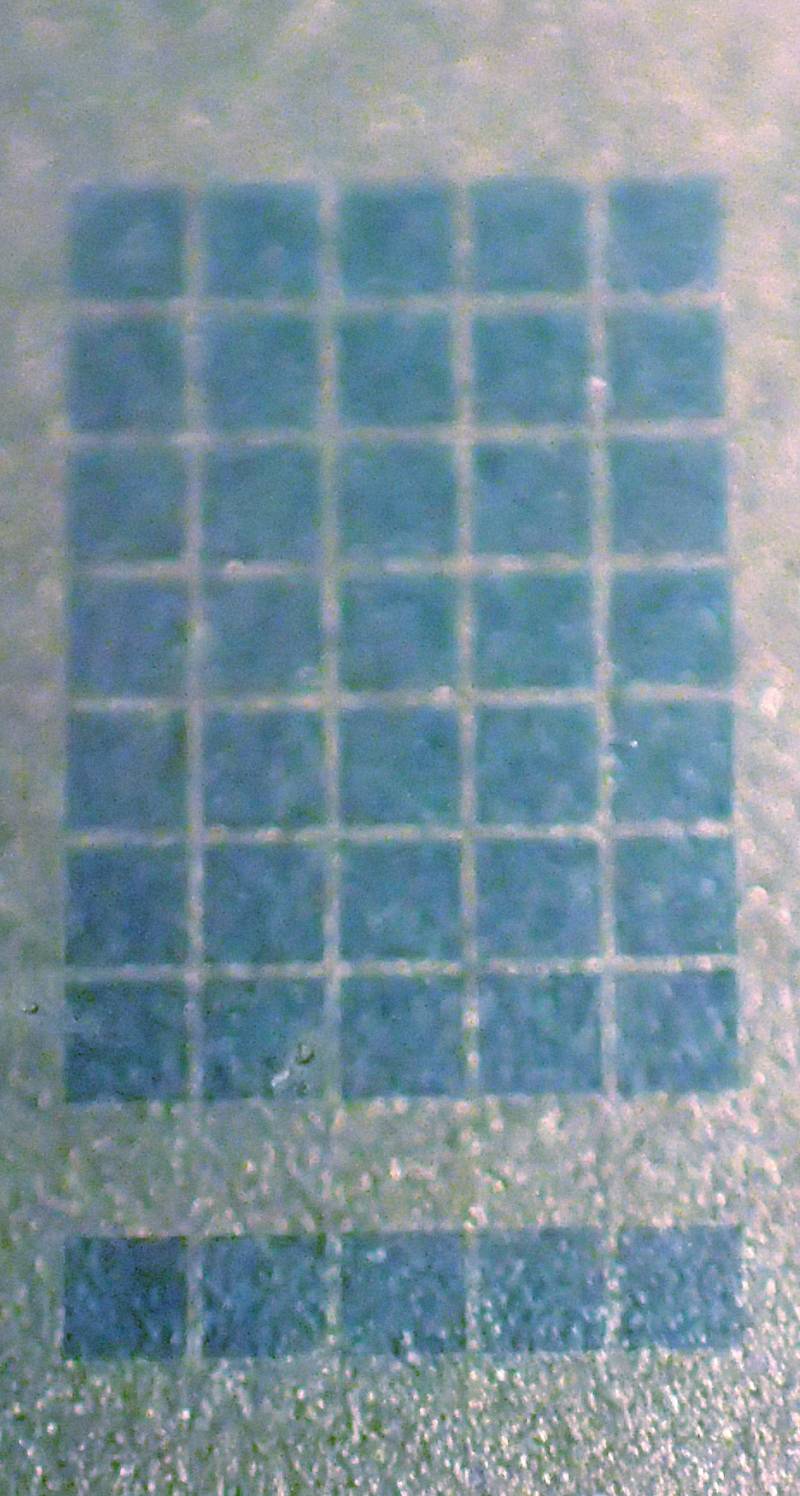

| Char matrix | 5×8 1) |
| Driver IC | μPD7228 |
| Backlight | - |
| Arduino driver | μPD7228 driver library |
| Connector | |
| Num Pins | 13 |
| Pin spacing | 0.08 |
| Arduino test rig 2) | ||||
|---|---|---|---|---|
| Pin# | IC pin | Label | Pin | colour |
| 1 | 41 | clock | ||
| 2 | 40 | reset | ||
| 3 | 39 | cs' | ||
| 4 | 36 | c/d' | ||
| 5 | 35 | stb'/sck' | ||
| 6 | 32 | busy' | ||
| 7 | 30 | d3 | ||
| 8 | 29 | d2 | ||
| 9 | 28 | d1 | ||
| 10 | 27 | d0 | ||
| 11 | 213) | vlc5 | ||
| 12 | 34 | gnd | ||
| 13 | 33 | vdd | ||
Compatible with geb2294v0.
