This is an old revision of the document!
LCD Description |
|
|---|---|
| Model | Lucille |
| Manufacturer | Lenco |
| Recovered from | Lenco Lucille Retro Radio |
| LCD type | positive |
| Polarizer type | transflective |
| Columns | 16 |
| Rows | 2 |
| Char matrix | 5×8 |
| Driver IC | Chip on Glass (CoG) |
| Backlight | blue LED |
| Arduino driver | |

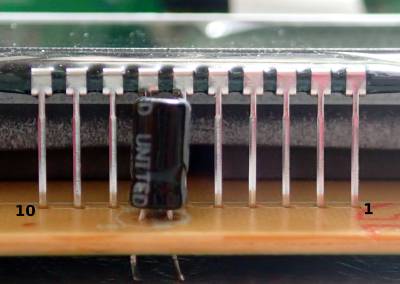

| Connector | Pins |
| Num Pins | 10 |
| Pin spacing | 0.1“ |
| Arduino test rig 1) | ||||
|---|---|---|---|---|
| Pin# | IC pin | Label | Pin | colour |
| 1 | Vo | |||
| 2 | ||||
| 3 | ||||
| 4 | 3.3V | |||
| 5 | Gnd | |||
| 6 | MISO | |||
| 7 | SClk | |||
| 8 | CS | |||
| 9 | MOSI | |||
| 10 | Reset | |||
Examples :
1)
reminder for my personal testing, not useful for anyone else!
