This is an old revision of the document!

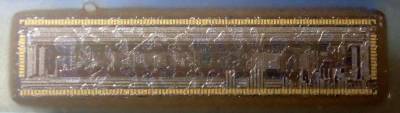

LCD Description |
|
|---|---|
| Model | LMP202C10-FR b8F028 |
| Manufacturer | |
| Recovered from | Panasonic UF6100 1) |
| Columns | 20 |
| Rows | 2 |
| Char matrix | 5×7 |
| Driver IC | COG |
| Backlight | - |
| Arduino driver | |
| Connector | pins |
| Num Pins | 16 |
| Pin spacing | 0.07“ |
| Arduino test rig 2) | ||||
|---|---|---|---|---|
| Pin# | IC pin | Label | Pin | colour |
| 1 | RS | 8 | ||
| 2 | R/W | GND | ||
| 3 | E | 9 | ||
| 4 | DB0 | |||
| 5 | DB1 | |||
| 6 | DB2 | |||
| 7 | DB3 | |||
| 8 | DB4 | 4 | ||
| 9 | DB5 | 5 | ||
| 10 | DB6 | 6 | ||
| 11 | DB7 | 7 | ||
| 12 | VSS (GND) | GND | ||
| 13 | VDD (+5V) | +5V | ||
| 14 | VIN (+5V) | +5V | ||
| 15 | V5 | 3) | ||
| 16 | GND | GND | ||

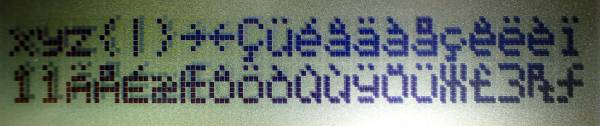

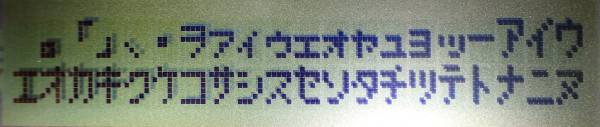

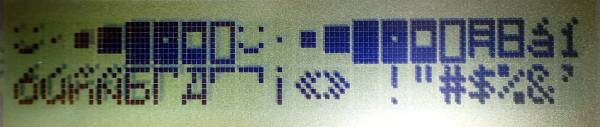

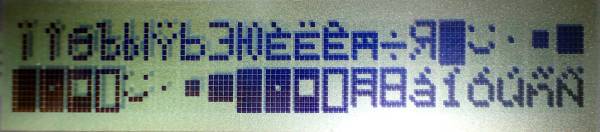

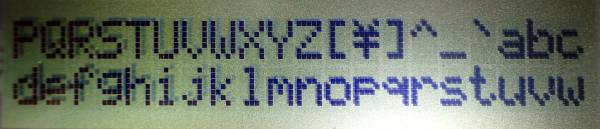

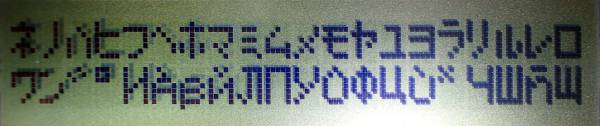

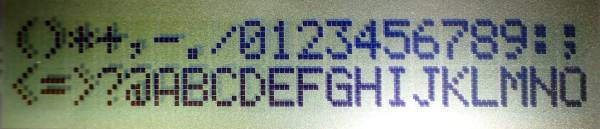

Examples :
