This is an old revision of the document!
| LCD Description | |
|---|---|

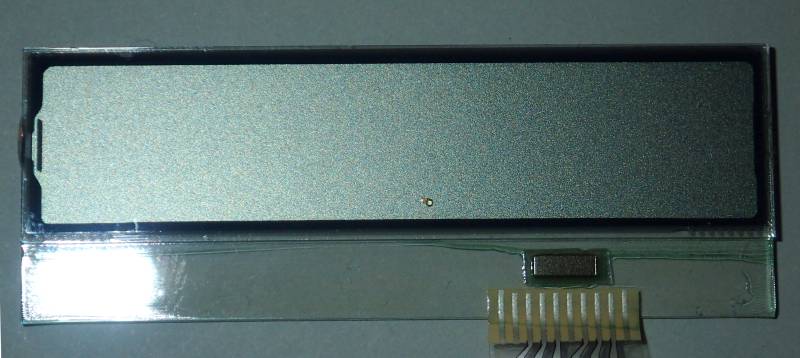

| Model | g7A145, L303646 |
| Manufacturer | |
| Recovered from | Brother FAX-2820 |
| Board IDs | |
| LCD type | positive |
| Polarizer type | reflective |
| Columns | 16 |
| Rows | 1 |
| Char matrix | 5×8 |
| Driver IC | |
| Backlight | - |
| Arduino driver | |
| Connector | PCB flex cable |
| Num Pins | 6 |
| Pin spacing | 1mm |
| Connector pin-out | Arduino test rig | |||
|---|---|---|---|---|
| Pin# | IC pin | Label | Pin | colour |
| 1 | ||||
| 2 | ||||
| 3 | ||||
| 4 | ||||
| 5 | ||||
| 6 | ||||
Probably same pinout as b53K4631
Examples :
