LCD Description |
|
|---|---|

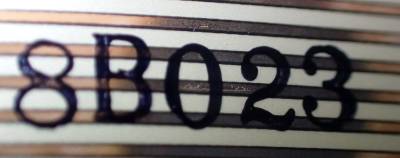

| Model | 8B023 |
| Manufacturer | |
| Recovered from | Canon MP220 |
| Board IDs | QK1-3703-02, QM3-2522 |
| LCD type | |
| Polarizer type | |
| Columns | 20 |
| Rows | 2 |
| Char matrix | |
| Driver IC | |
| Backlight | - |
| Arduino driver | |

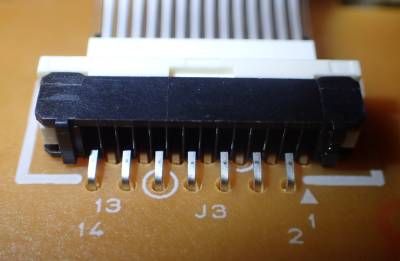

| Connector | PCB flex cable |
| Num Pins | 14 |
| Pin spacing | “ |
| Arduino test rig 1) | ||||
|---|---|---|---|---|

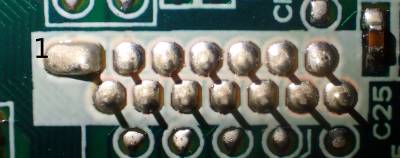

| Pin# | IC pin | Label | Pin | colour |
| 1 | 14.50k | |||
| 2 | ||||
| 3 | ||||
| 4 | 14.71k | |||
| 5 | 14.8k | |||
| 6 | 14.71k | |||
| 7 | 14.31k | |||
| 8 | 14.07k | |||
| 9 | 13.96k | |||
| 10 | 13.75k | |||
| 11 | 14.44k | |||
| 12 | GND | |||
| 13 | 13.83k | |||
| 14 | 3.44k | |||
Examples :
front:800 back overview with board connector chip characterset:400 examples pixel layout circuit
1)
reminder for my personal testing, not useful for anyone else!
