| LCD Description | |
|---|---|

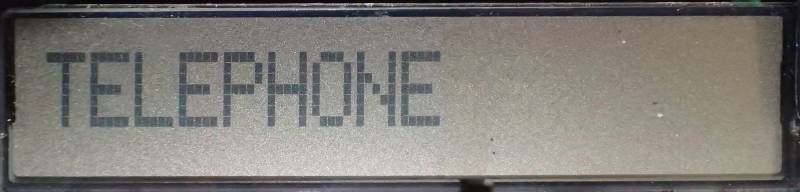

| Model | c7G045 |
| Manufacturer | |
| Recovered from | Panasonic KX-T7730 1) |
| LCD type | positive |
| Polarizer type | reflective |
| Columns | 16 |
| Rows | 1 |
| Char matrix | 5×8 |
| Driver IC | Hitachi HD44780 compatible (CoG) |
| Backlight | - |
| Arduino driver | LiquidCrystal_SPI |
| Connector | PCB flex cable 2) |
| Num Pins | 6 |
| Pin spacing | 1mm |
| Connector pin-out | Arduino test rig | ||
|---|---|---|---|
| Pin# | Label | Description | Pin |
| 1 | LDATA | ||
| 2 | LCDCK | ||
| 3 | STB | ||
| 4 | GND | ||
| 5 | +5V | ||
| 6 | GND | ||
Pin 4 is probably V0, contrast adjustment, normally wired to a pot between +5V and GND.
Same connector as 2L723, different physical size LCD but interchangeable.
