| DC Motor Description | ||||
|---|---|---|---|---|

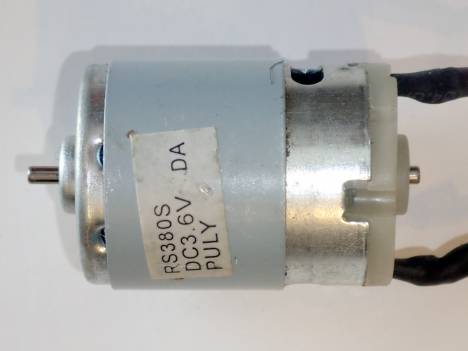

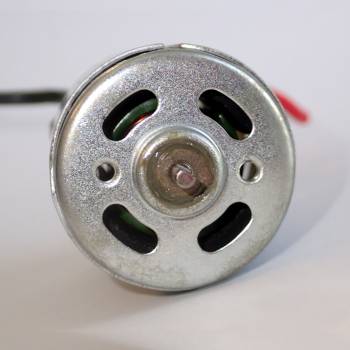

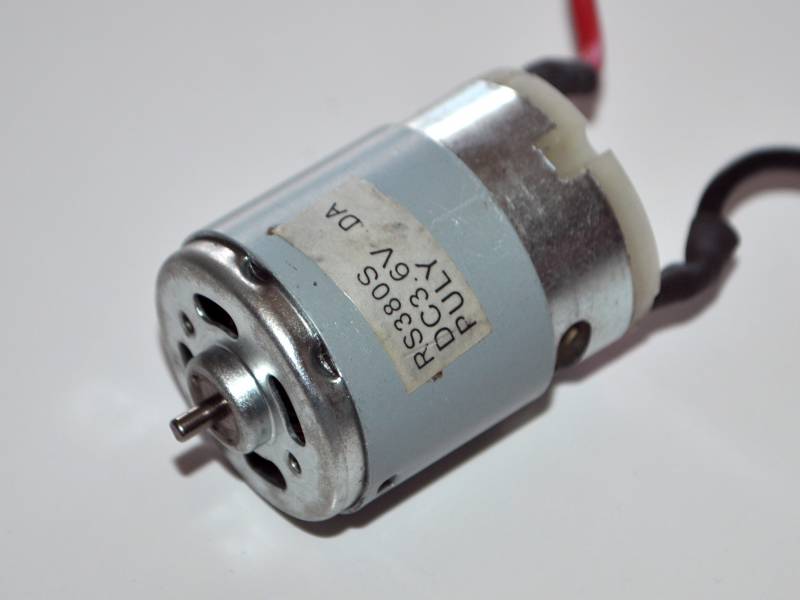

| Model | RS380S | |||
| Manufacturer | Aosheng | |||
| Recovered from | Ozito SDR-036 drill | |||
| Normal voltage | 3.6 VDC | |||
| Voltage range | VDC | |||
| DC resistance | 0.6 ±0.1 Ω | |||
| Performance | 3.6 V, no load | 3.6 V, g-cm load | , g-cm load | |
| Speed | 16000? RPM | 13518? RPM | Stalled | |
| Current | 1.35? A | 7.35? A | 40? A | |
| Starting torque | 796? g-cm | |||
| Rotation | Either direction, depending on power polarity | |||
| Dimensions | (including shaft) | Shaft | ||
| Length | 48.5 mm | 4 mm | ||
| Diameter | 27.5 mm | 2.3 mm | ||
| Weight | 72 g | |||

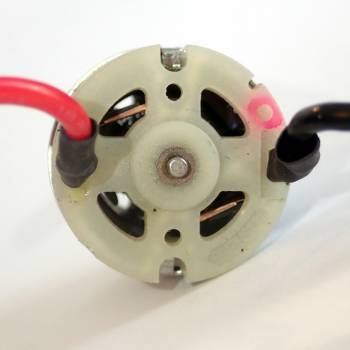

| Connectors | Lugs | |||
Additional info
- Appears to be much the same as the Leshi Motor LS-380S-30529
