PIR module data
| PIR Description | |
|---|---|

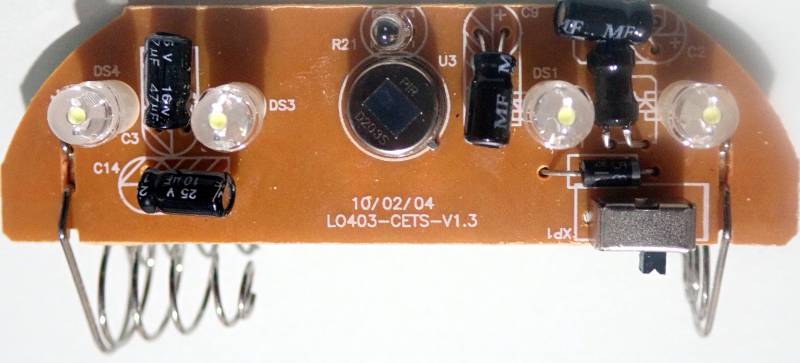

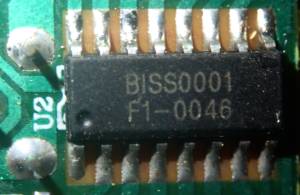

| Model | Lo403-CETS-V1.3 |
| Manufacturer | |
| Operating voltage | 1.5V |
| Quiescent Current | |
| Output level | 3.3V |
| Retriggerable | y |
| Delay time | 5s |
| Block time | |
| Board Dimensions | |
| Sensor cone angle | 125º |
| Sensor range | |
| Operation Temperature | -30 - 70ºC |

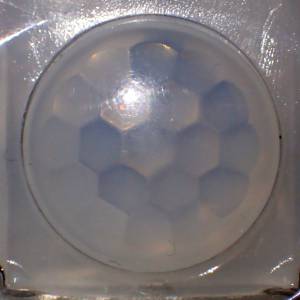

| Sensor lens size | 15mm |
Datasheets :
Examples :
