Dual/Stepper Motor Controller Module
| Module Description | |
|---|---|
| Model | XC4492 |
| Manufacturer | Duinotech |
| Description | Dual/Stepper Motor Controller Module |
| Other designations | Duinotech L298, TA0052 iduino L298 , Keyes L298, Keyestudio L298N |
| Associated modules | - |
| Voltage | 3V - 30V |
| Current | 4A max total load |
Overview
It uses the L298N Dual Motor Driver chip to provide full control of two DC motors or a single stepper-motor.

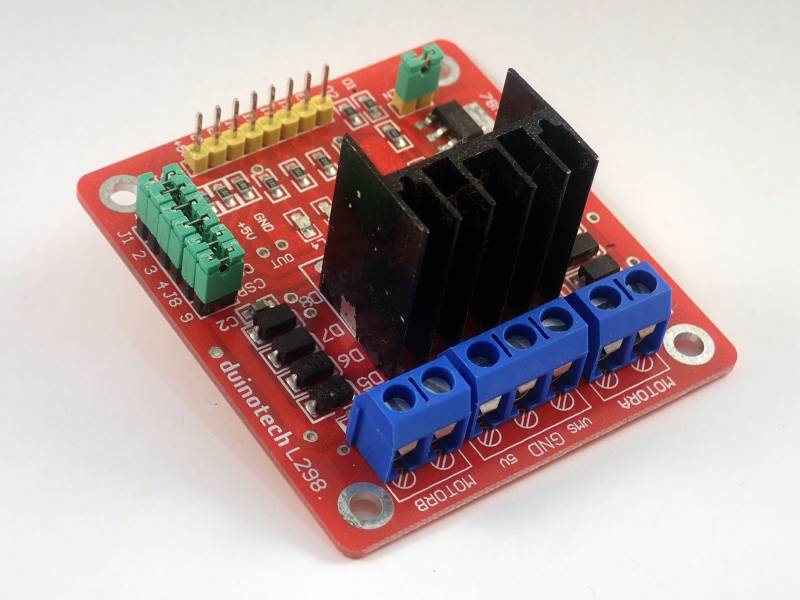

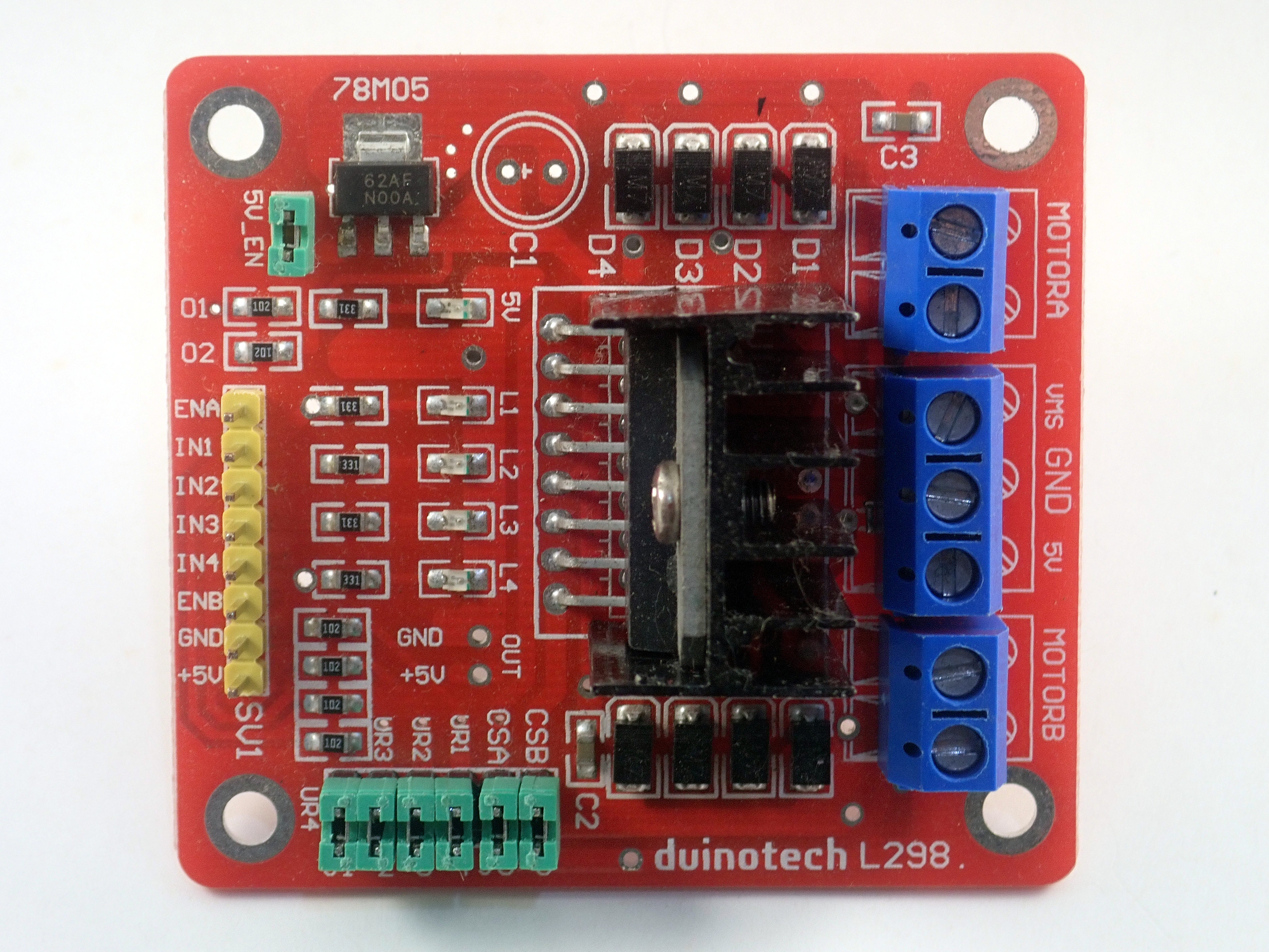

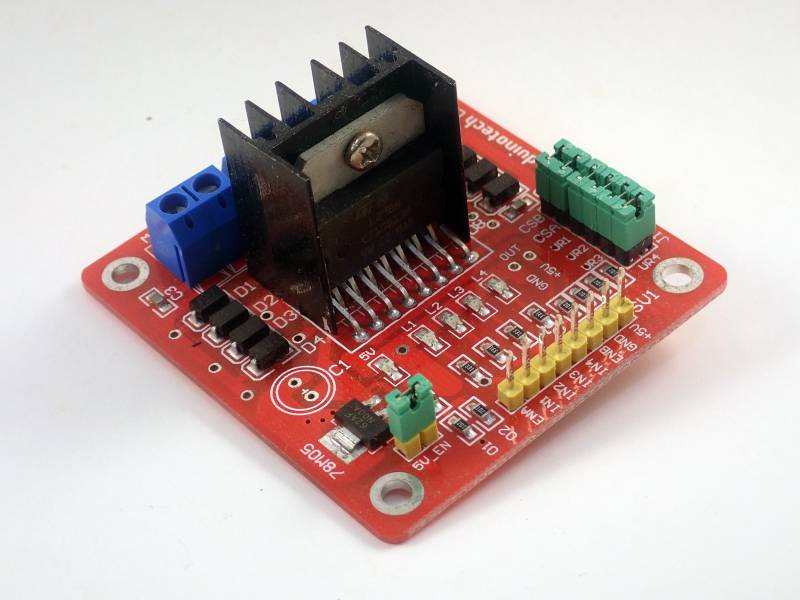

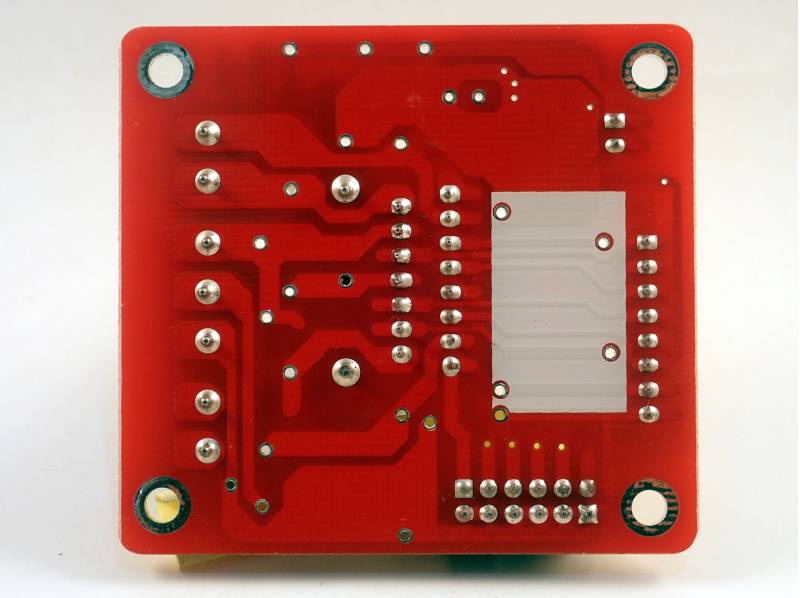

Hardware description
Components
- L298N, Dual full-bridge driver
Features
- 3V DC - 30 V DC operating voltage
- 2A peek current per motor channel
- Back-EMF protection
- Over-temperature protection
- On-board 5V regulator can also power attached Arduino etc
- Status LEDs (logic power and input status)
- Provision for current sense resistors
Revisions
Schematics
| XC4492 circuit schematic : |
|---|
Note: C1 not actually installed.
| Jumper block | |
|---|---|
| CSB | Insert current sense resistor between pins to measure current on channel B, or short with jumper if not used |
| CSA | Insert current sense resistor between pins to measure current on channel A, or short with jumper if not used |
| UR1 | Jumper to activate pullup on IN4 (not needed for Arduino) |
| UR2 | Jumper to activate pullup on IN3 (not needed for Arduino) |
| UR3 | Jumper to activate pullup on IN2 (not needed for Arduino) |
| UR4 | Jumper to activate pullup on IN1 (not needed for Arduino) |
| 5V_EN | Jumper to enable +5V power to the board via 5V regulator from VMS supply |
|---|
If you install jumper “5V_EN” the board can generate +5V from the VMS (motor) supply using an onboard regulator but only if that VMS supply is less than 16V. That +5V can be used to power an attached Arduino etc via the pin header. Otherwise (eg VMS >16V, too high for regulator), the board needs an external +5V supply as well as the VMS supply.
Examples
References and Additional Resources
- XC4492 datasheet.
- L293, L293E and L298 application notes.
- TA0052 datasheet.
- Keyestudio L298N wiki page.
If any referenced page no longer exists, try looking for its URL on http://archive.org.
