Dual/Stepper Motor Controller Module
| Module Description | |
|---|---|
| Model | XC4492 |
| Manufacturer | Duiotech |
| Description | Dual/Stepper Motor Controller Module |
| Other designations | - |
| Associated modules | |
| Voltage | 5V |
| Current | 4A max load |
Overview
It uses the L298N Dual Motor Driver chip to provide full control of two DC motors or a single stepper-motor.

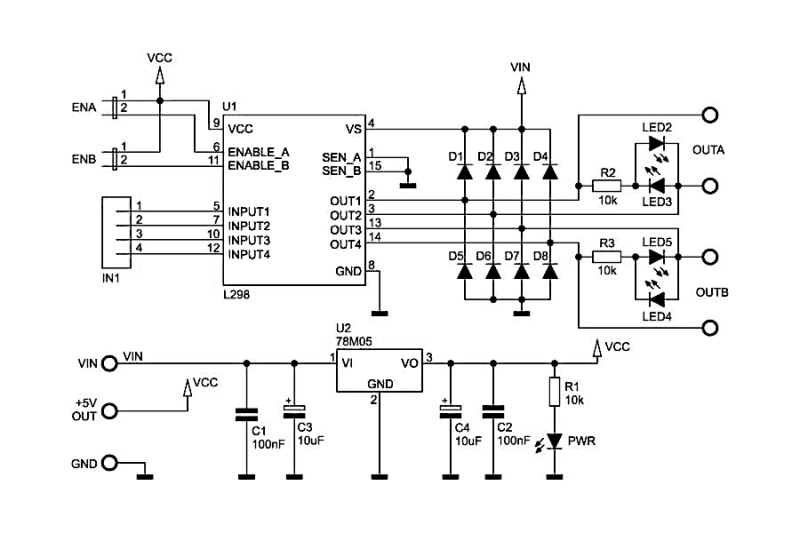

Hardware description
Components
- L298N, Dual full-bridge driver
Features
- 3V DC - 30 V DC operating voltage
- Back-EMF protection
- Over-temperature protection
- On-board 5V regulator can provide power to Arduino etc
- Status LEDs
Revisions
Examples
References and Additional Resources
- XC4492 datasheet.
If any referenced page no longer exists, try looking for its URL on http://archive.org.
1)
PAGE UNDER CONSTRUCTION
