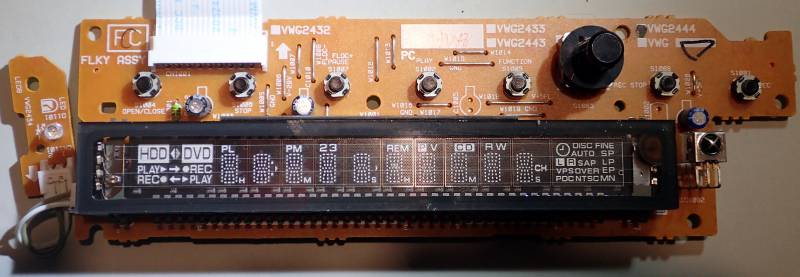

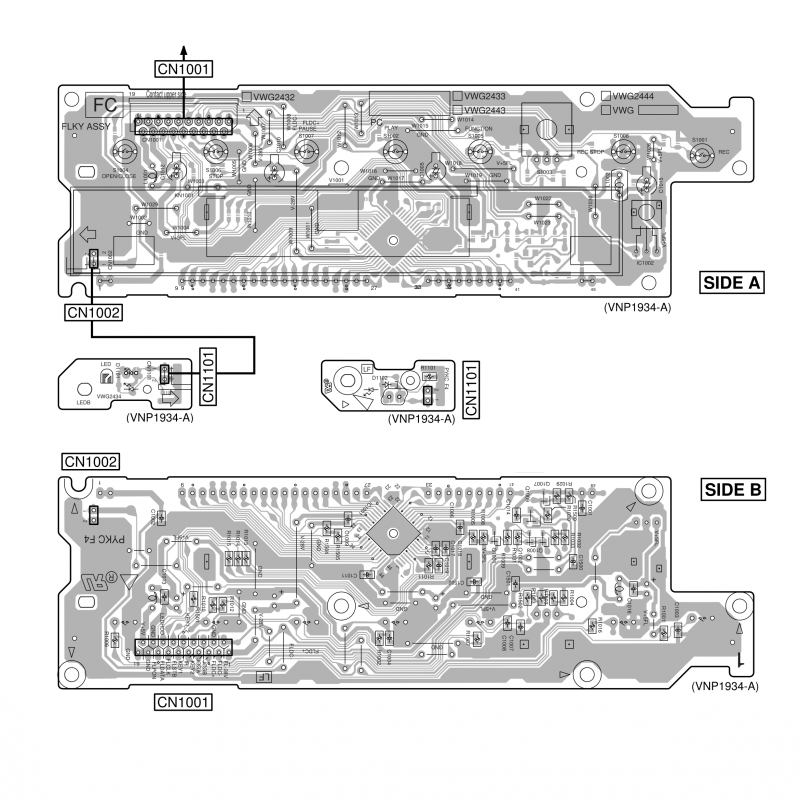

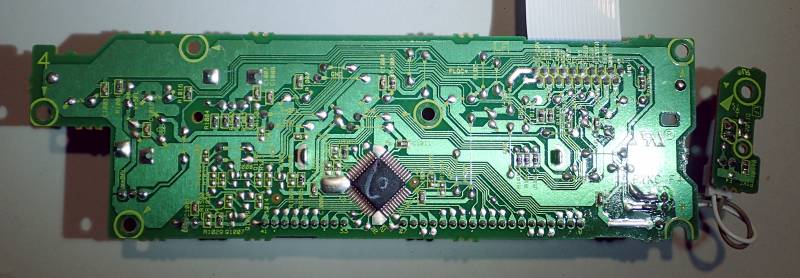

VFD module data

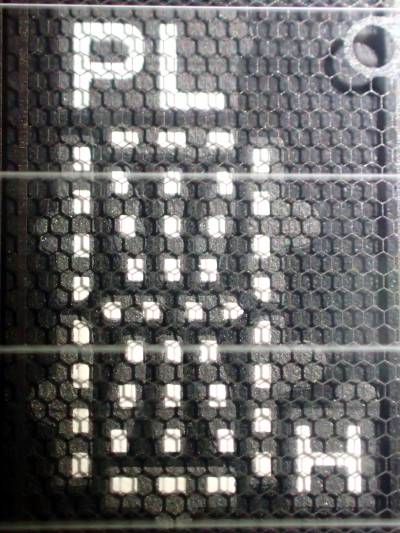

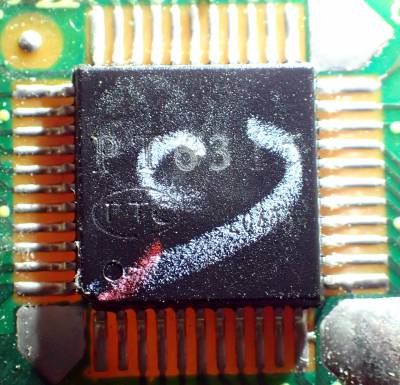

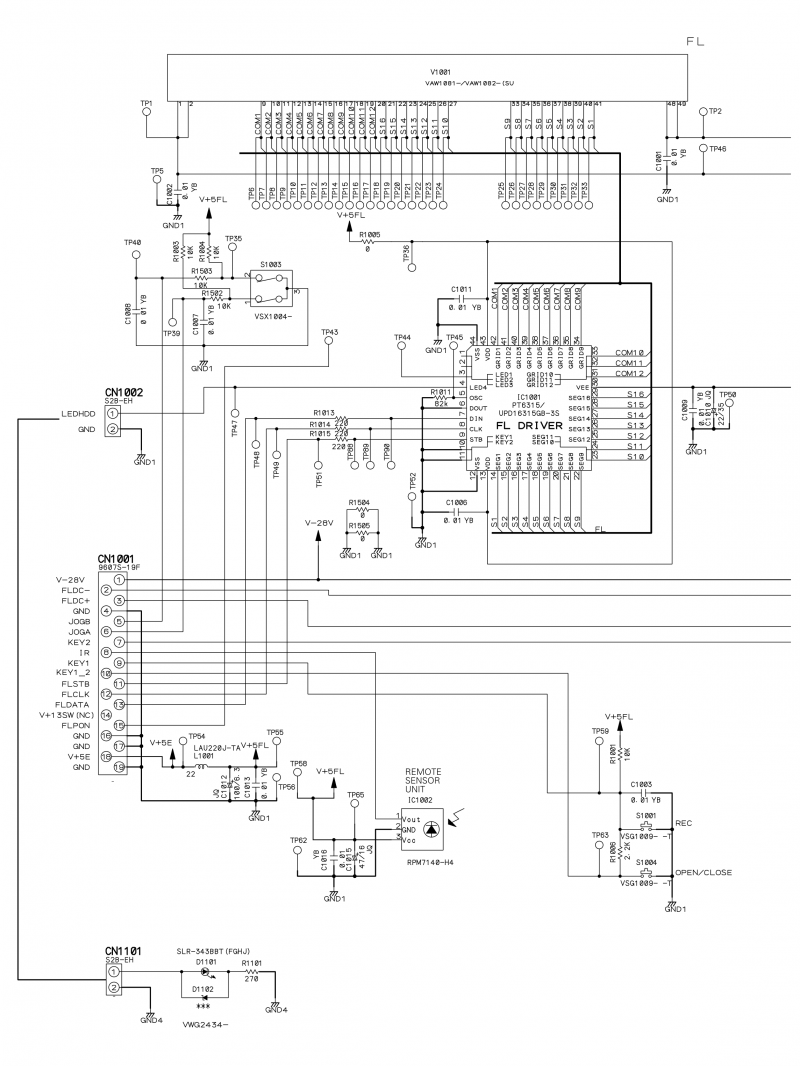

| VFD Description | |
|---|---|
| Model | DVR-510H-S |
| Manufacturer | |
| Recovered from | Pioneer DVR-510H-S/DVR-5100H 1)2) |
| Character type | Alphanumeric |
| Characters | 10+ |
| Colour | |
| Driver IC | PT6315 |
| Connector | pins |
| Num Pins | 49 |
| Pin spacing | 0.1” |
Datasheets
- PT6315 Vacuum Fluorescent Display Controller.
- PT6315 Vacuum Fluorescent Display Controller application note.
