RC-5966


Overview

Camera data
ModelRC-5966
Manufacturer?
Board IDsHDI1145-35. V1.5, B 1748, FY-5006(3)
TypeHD composit video
Memory card-
Video outputAHD, PAL, 1Vpp 75Ω
Date
RC-5966 video camera
RC-5966

Hardware description



The camera has an infrared illumination board as a separate module, it contains six 850nm infrared, 2835 SMD package (2.8mm x 3.5mm ), LEDs and a light dependent resistor (LDR) for detecting ambient light levels. It also has a “IR - CUT interface, with import lens luminosity uniformity”. Powered from DC12V, 150mA & 350mA.

Components

  • HDI 8901H IC0056 1737
  • Fremont Micro Devices FT25H04S Flash Memory, 4Mbit SPI, 120 MHz
  • 3.6mm 3MP HD sensor
  • Feyond FY-5006, infrared LED board.
  • jwbv p95f 6pin chip

Examples

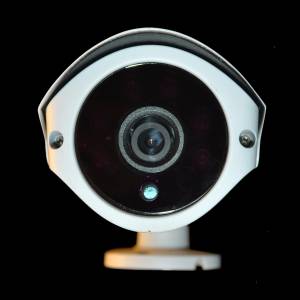

RC-5966 top

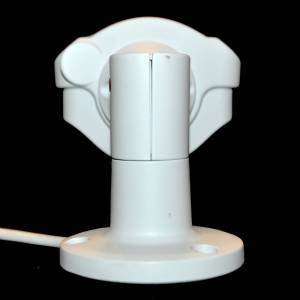

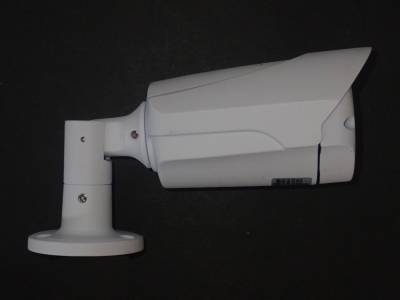

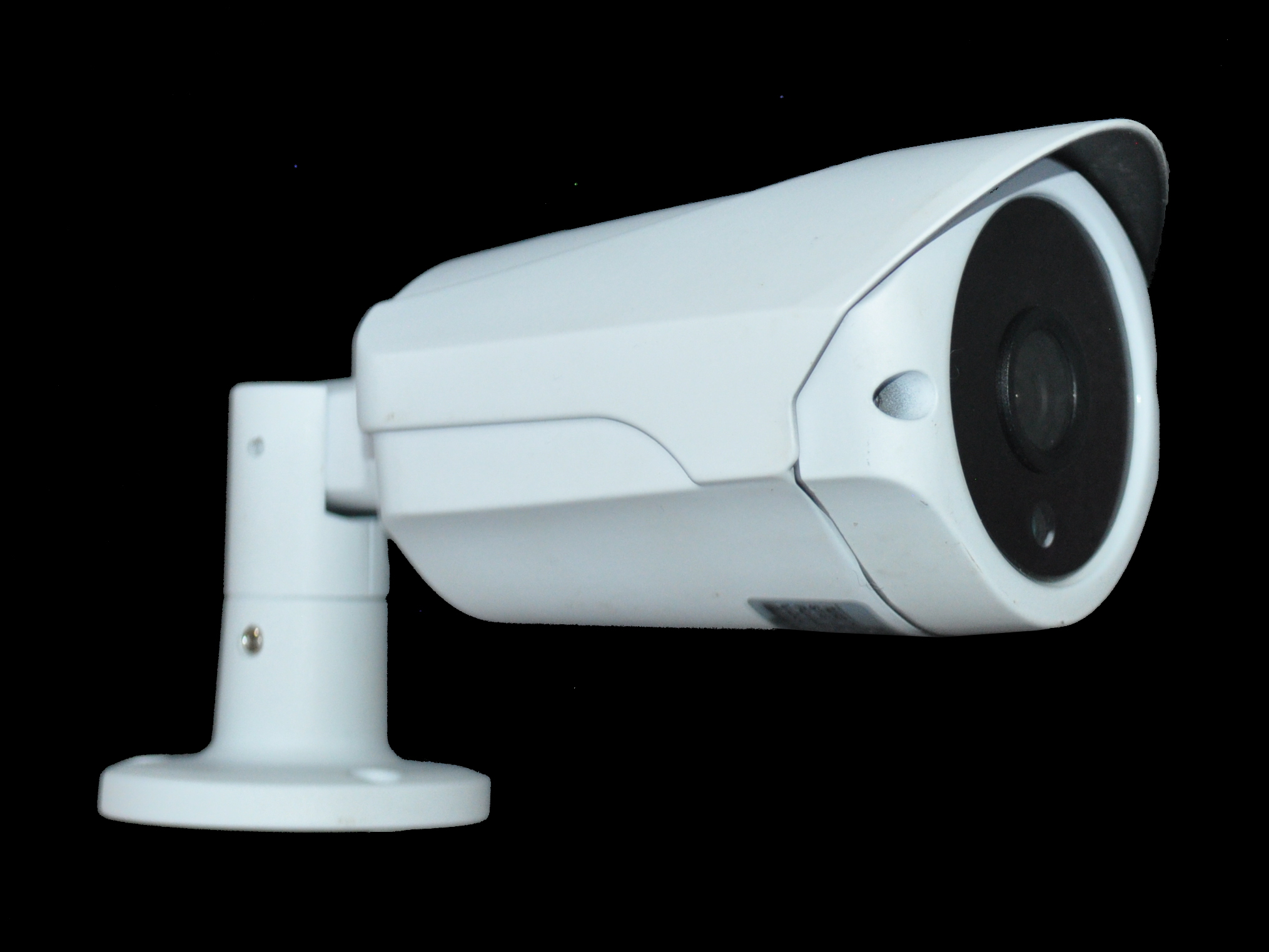

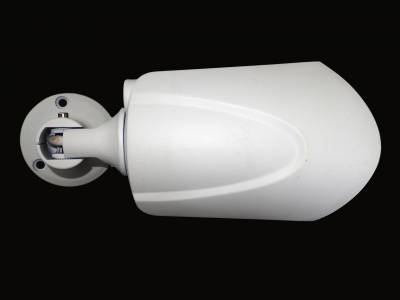

RC-5966 backRC-5966 sideRC-5966 front

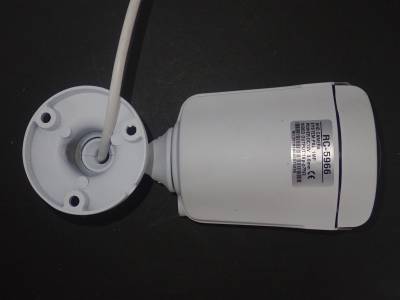

RC-5966 bottom

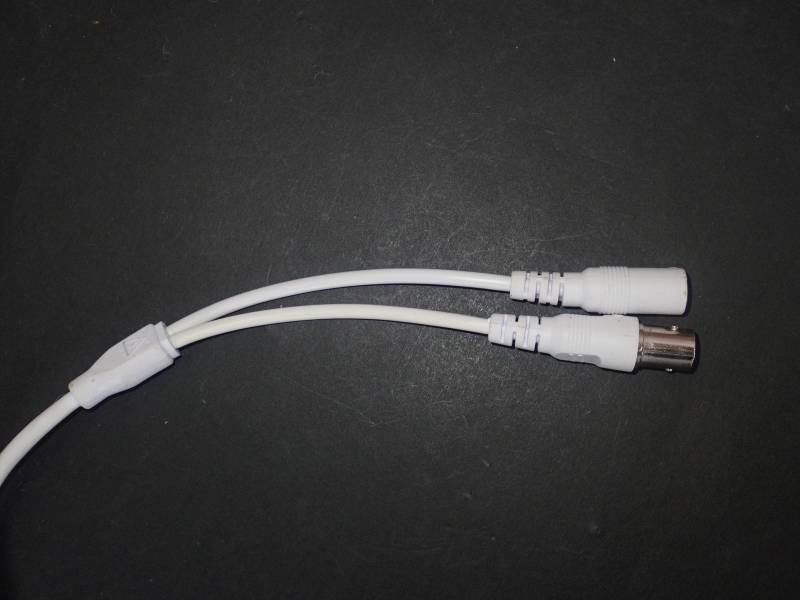

RC-5966 cable

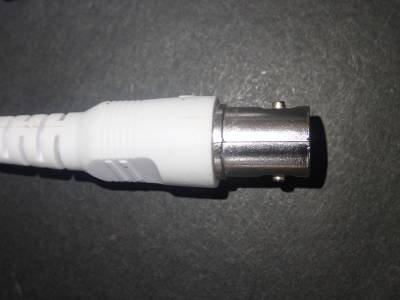

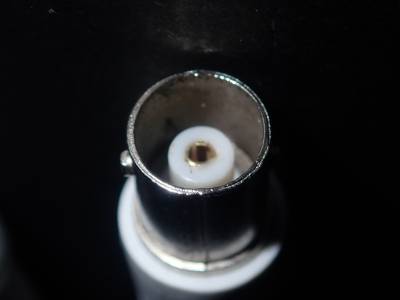

RC-5966 video connectorRC-5966 video connector

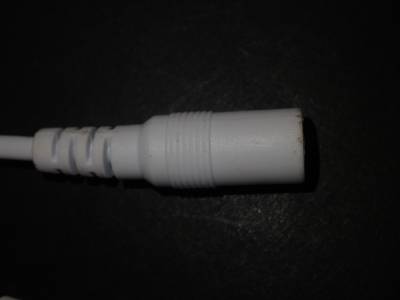

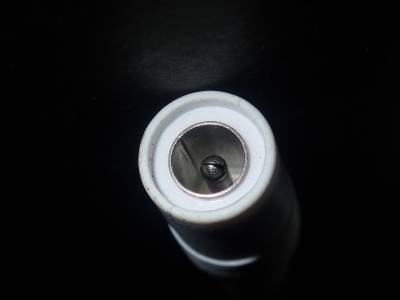

RC-5966 power connectorRC-5966 power connector

—-

Tear down

The lens cover is held on by two philips-head screws.

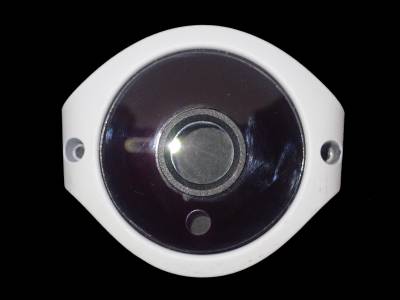

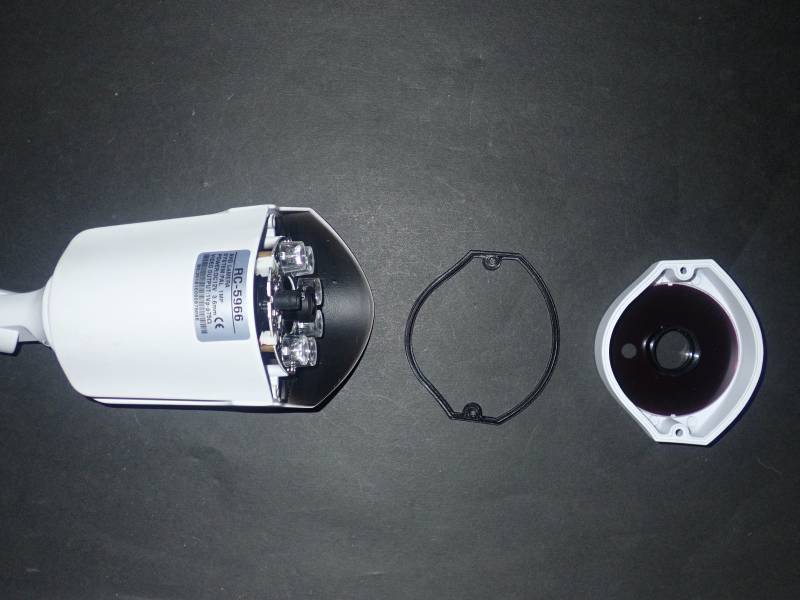

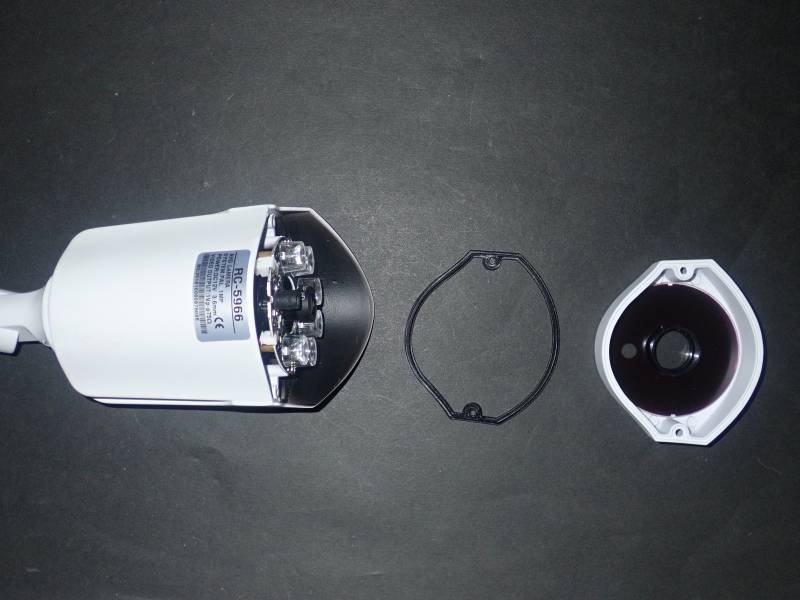

RC-5966 lens cover removed

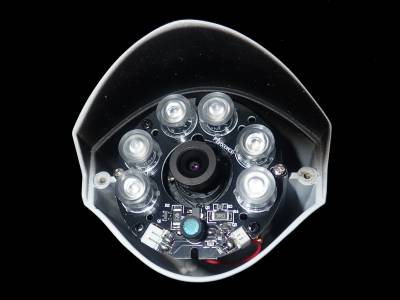

RC-5966 inside front

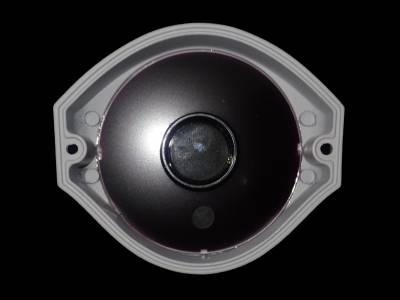

RC-5966 lens cover front RC-5966 lens cover back

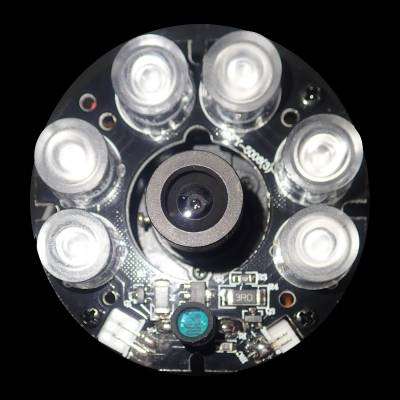

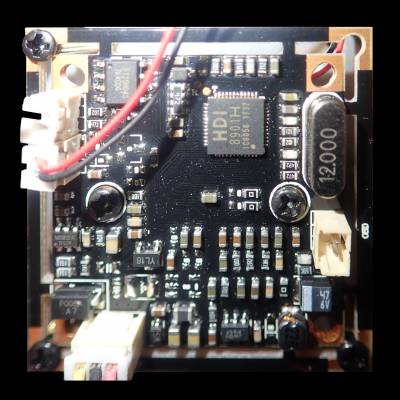

RC-5966 FY-5006 infrared LED PCB RC-5966 camera PCB
