Arduino Shields
Published 18 Jul 2023
Arduino Ethernet Shield R3.0
| Shield Description | |
|---|---|
| Model | Ethernet Shield R3.0 |
| Manufacturer | Arduino |
| Brand | Arduino |
| Clone of | - |
| Arduino compatibility | Uno |
| Type | Ethernet |
| Voltage | 5V |
| Current | |
| Software | |

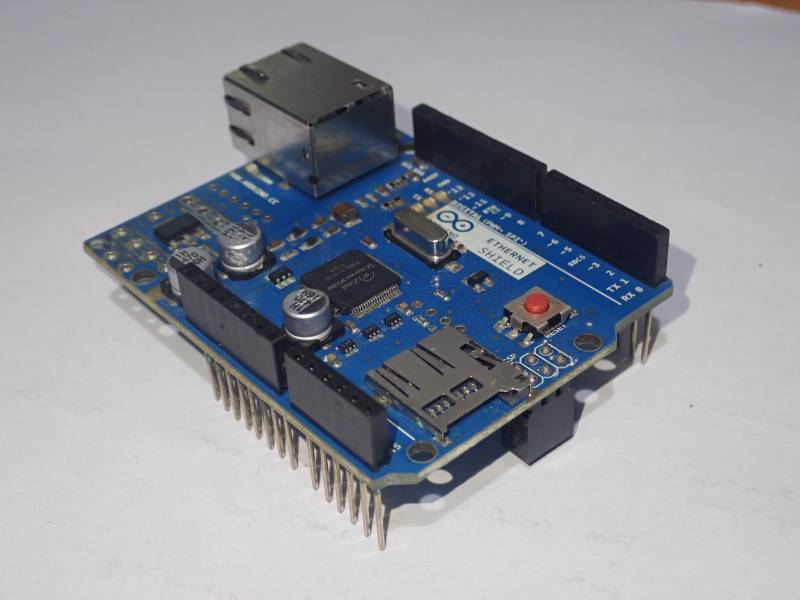

Overview
An ethernet networking interface.
Features
- Wiznet W5100 ethernet chip
- Provides a network (IP) stack capable of both TCP and UDP
- Supports up to four simultaneous socket connections
- Uses digital pins 10, 11, 12, and 13 (SPI) to communicate with the W5100
Examples
References and Additional Resources
