Nokia 3310 overview

LCD Description
ModelNokia 3310
ManufacturerPhilips
Recovered fromNokia 3310 cellphone
Board IDs
LCD typepositive
Polarizer typetransflective
Columns84 pixels
Rows48 pixels
Char matrix-
Driver ICPhilips PCD8544
Backlight-
Arduino driverU8g2lib.h
Connectorpins
Num Pins8
Pin spacing0.044”
Module sizemm

LCD front view diagram
Connector layout, LCD front view

LCD pinout
PinLabelDescription
1VDD2.7V - 3.3V
2CLKClock
3SDINData in
4D/CData or command
5SCEChip select
6VSSGround
7VLCDDC/DC voltage converter
8RESReset
9 Cap1
10 Cap1
11 Cap2
12 Cap2

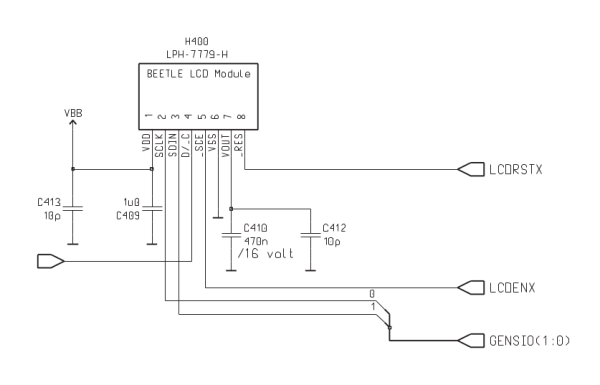

Nokia 3210 LCD circuit


Examples :

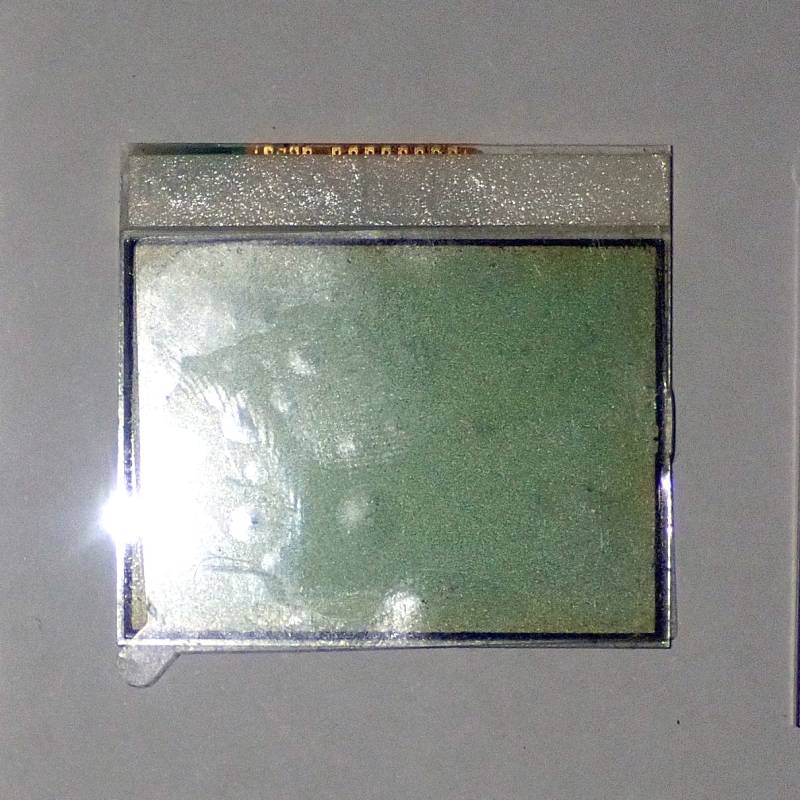

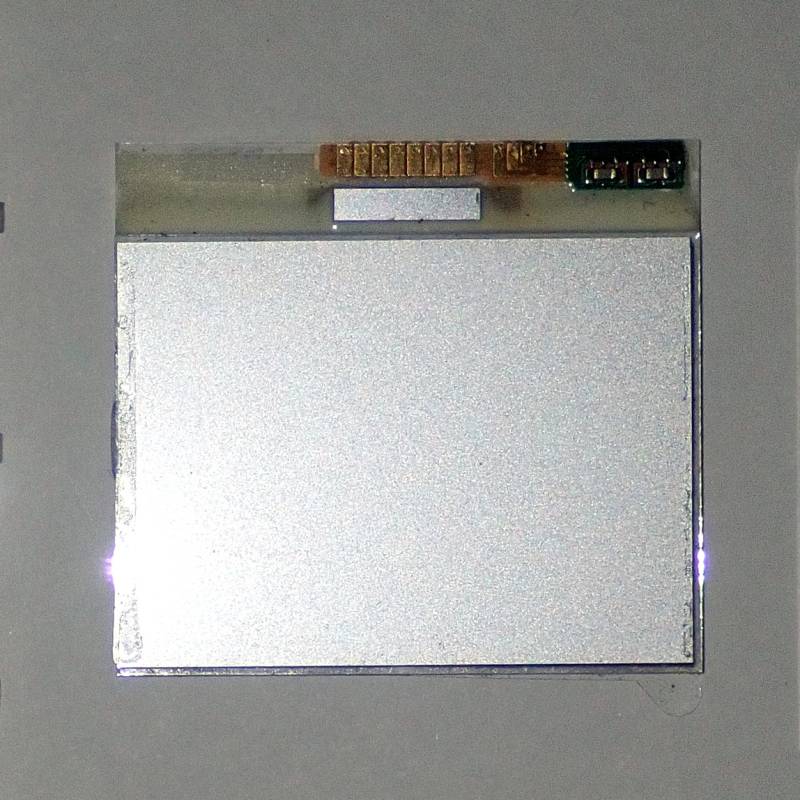

Nokia 3310 front Nokia 3310 back

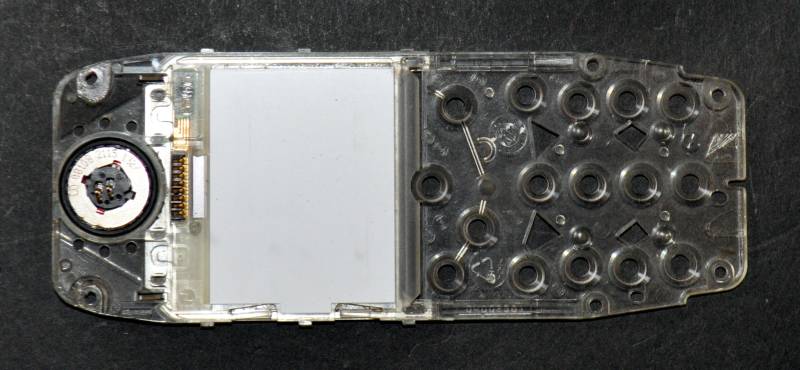

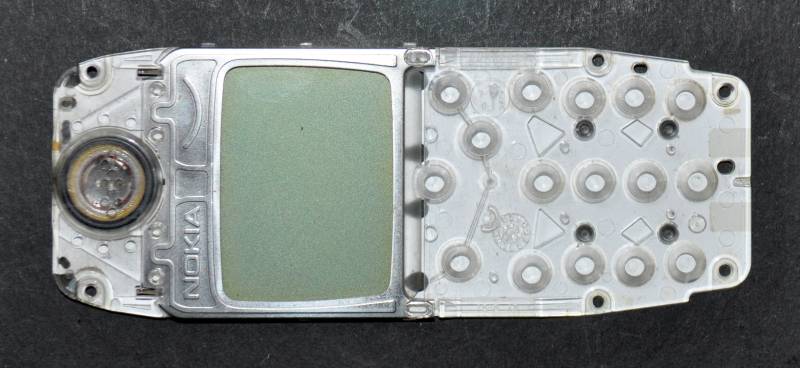

Nokia 3310 overview with board front Nokia 3310 overview with board back

NOKIA3310 connector
The edge of the LCD has two capacitors mounted on it, but they don't appear to be connected as there are no pins that contact their four copper edge pads.

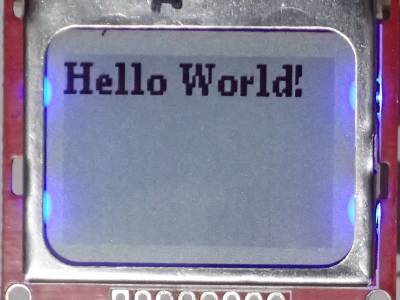

Nokia 3310 examples

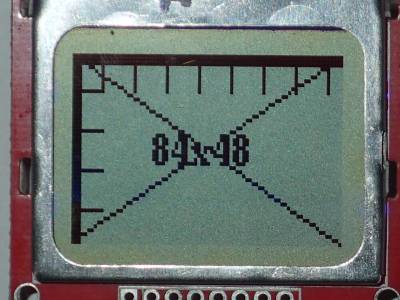

Nokia 3310 examples
Nokia 3310 examples

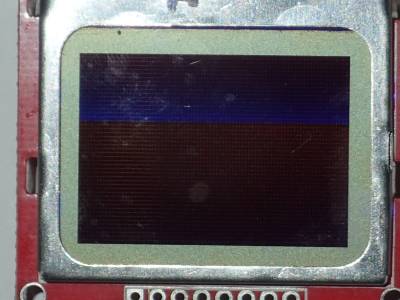

Nokia 3310 pixel layout


Mounting on PCB

To reuse these in Arduino projects it is useful to have them mounted on a PCB.

After disassembly (plastic welds holding bezel must be sliced off) the LCD can be extracted and fitted as a perfect replacement in a Diymore Nokia 3310 LCD adapter board:
Nokia 3310 LCD disassembled top Nokia 3310 LCD disassembled bottom

Nokia 3310 LCD with Nokia 3310 bezel and reflector ready for reassembly, top Nokia 3310 LCD with Nokia 3310 bezel and reflector ready for reassembly, bottom

Nokia 3310 remounted, overview
