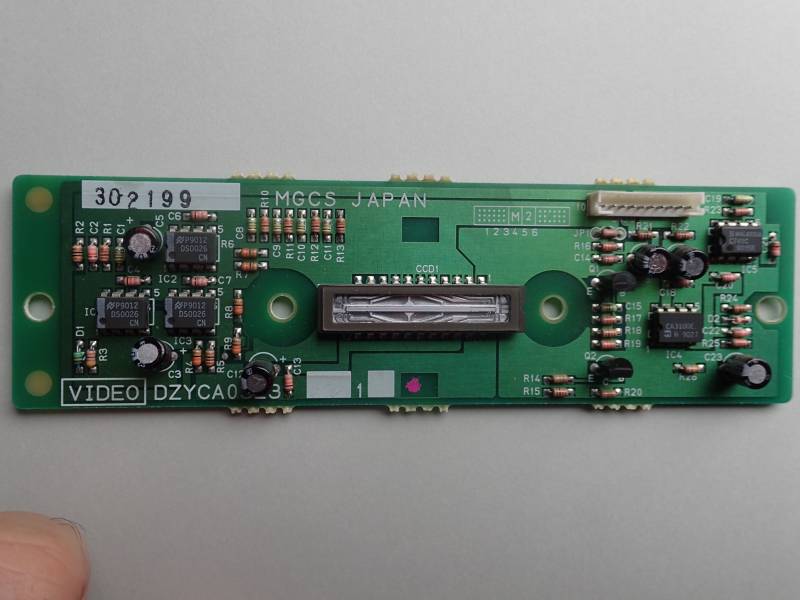

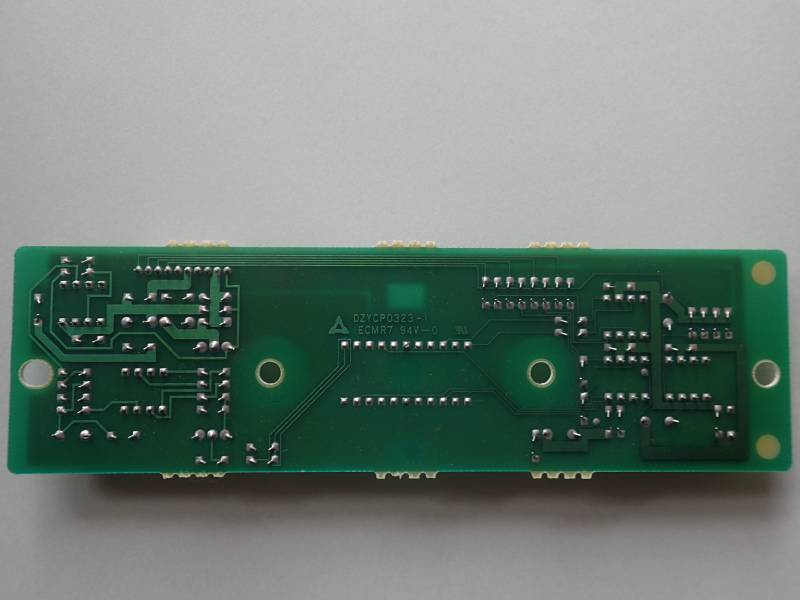

DZYCA0323 Video

CCD Description
ModelDZYCA0323 Video
ManufacturerMatsushita Graphic Communication Systems (MGCS)
Recovered fromPanasonic UF250 Fax?

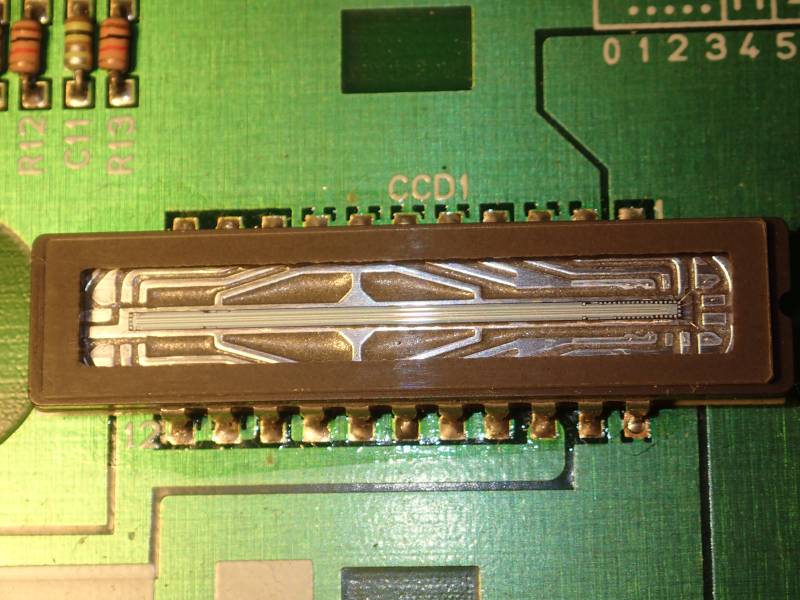

SensorToshiba TCD102C 1)
Pixels2048
ColourMono
Dynamic range600
Driver ICDS0026, 741, CA3100

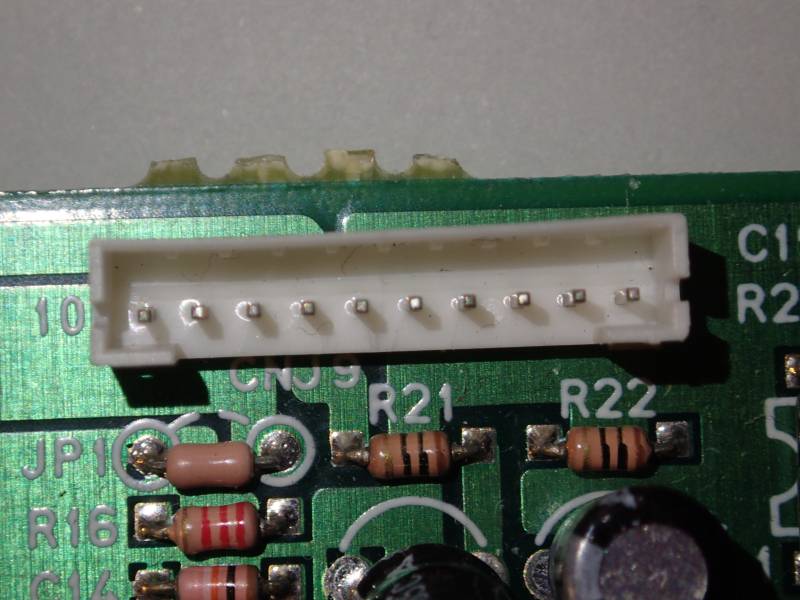

Connector
Num Pins10
Pin spacing0.08”

Datasheets :


Examples :

DZYCA0323 Video3

DZYCA0323 Video3

DZYCA0323 Video3

DZYCA0323 Video3

DZYCA0323 Video3

DZYCA0323 Video3

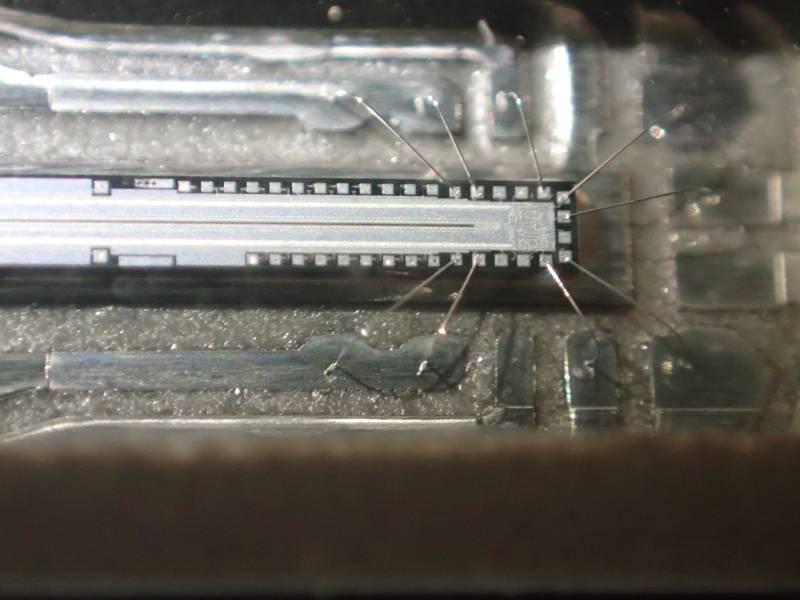

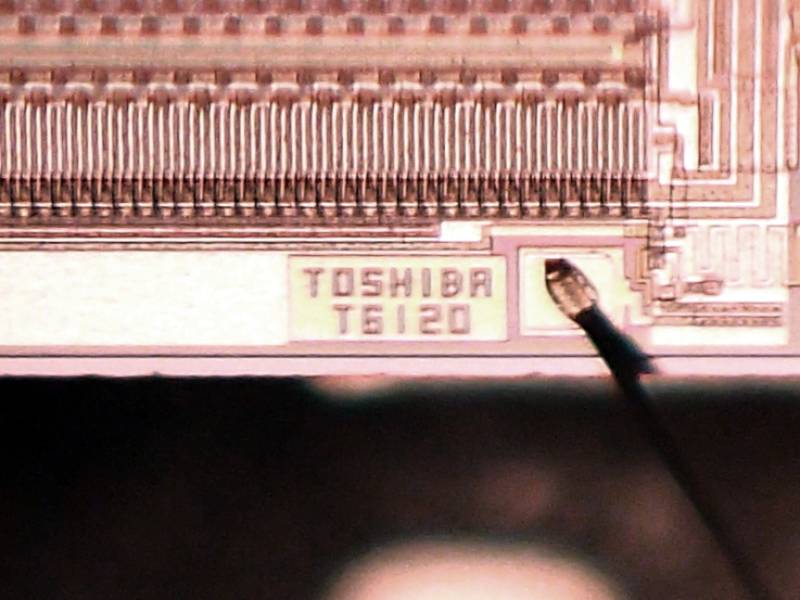

1) I have not verified this by unsoldering the chip, the die is marked T6120 if that helps
