DC Motor Description
Model09350
Manufacturer
Recovered from-
Normal voltage VDC
Voltage range VDC
DC resistance20.5 ±0.1 Ω
Performance V, no loadV, g-cm load, g-cm load
Speed RPM RPMStalled
Current A A A
Starting torque g-cm
RotationEither direction, depending on power polarity
Dimensions(including shaft)Shaft
Length38 mm7.4 mm
Diameter20 mm2.0 mm
Weight16 g
ConnectorsLugs

Additional info


Examples

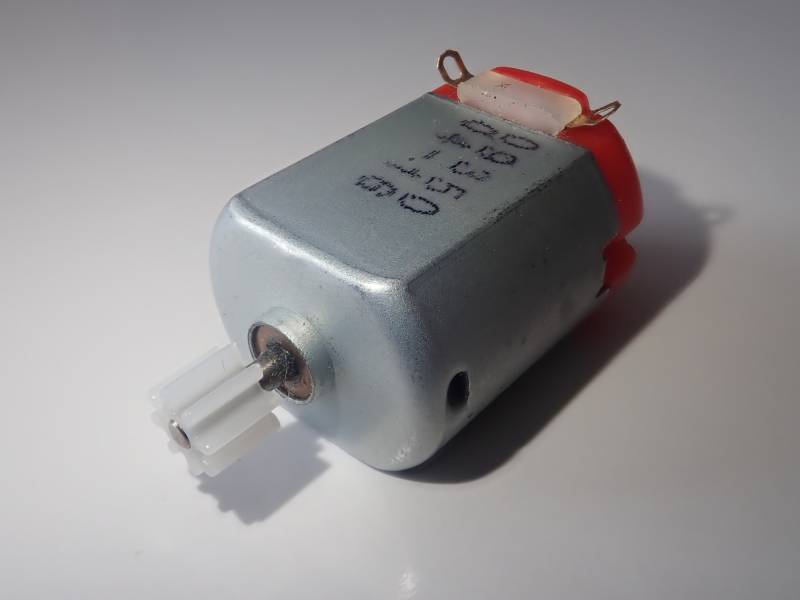

09350 overview

09350 top view
09350 front view09350 side view09350 rear view
09350 bottom view
09350 side view
